Most Red Light Panels Diffuse Light Broadly. This One Focuses It.

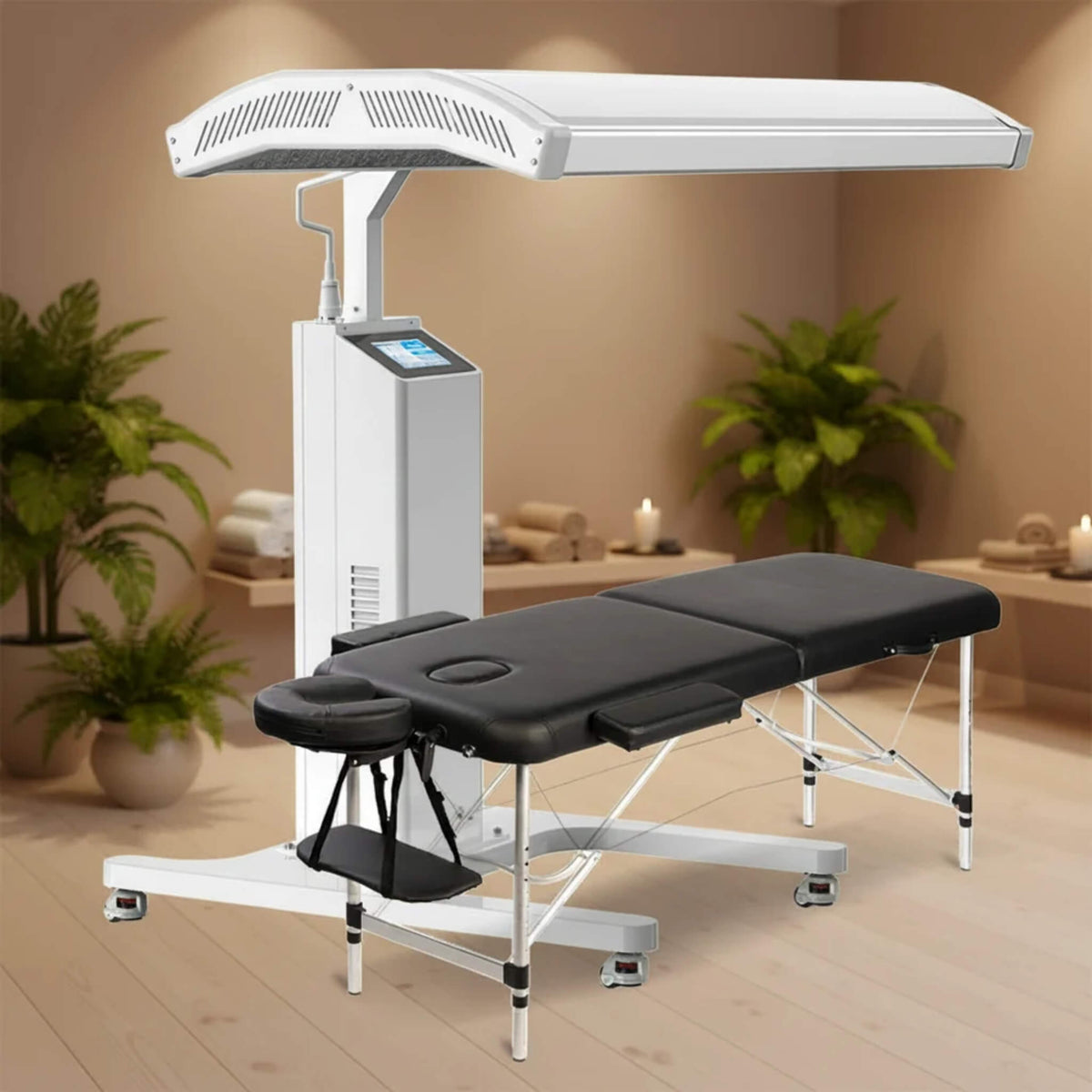

A typical wide-angle LED panel spreads its light output broadly, losing intensity and concentration the further it travels. The Dr.Fuji® ProLux 1500 is built differently: 1,280 LEDs run through a 30° precision optical lens system that focuses the light rather than letting it diffuse, mounted on a motorized, height-adjustable stand with locking casters so it can be raised, lowered, and rolled into position for any treatment area or body height.
How Does the ProLux 1500 Actually Work
The panel combines 660nm red light and 810nm near-infrared light, delivered through 1,280 densely packed LEDs. The 30° optical lens system concentrates that output instead of letting it diffuse the way a standard wide-angle panel does, which is designed to reduce light loss and increase energy concentration at the treatment surface. Irradiance is adjustable from 100 to 300mW/cm², power output is adjustable from 0 to 100%, and pulse frequency runs from 1 to 20,000Hz, all controlled through the smart LCD touchscreen.
What Does the 30° Optical Lens Actually Change
Most LED panels use wide-angle diffusion, spreading light output across a broad area but losing concentration as it travels. A 30° lens narrows that spread, keeping more of the light energy focused and concentrated by the time it reaches the treatment surface, which is the mechanism behind claims of deeper, more consistent penetration compared to a standard wide-angle panel at the same LED count.
What Can You Actually Expect
Red light therapy is commonly used to support muscle recovery, exercise recovery, joint comfort, healthy circulation, skin wellness, relaxation, and general recovery after physical activity. This product is intended to support general wellness and is not intended to diagnose, treat, cure, or prevent any disease.
Product Features
1,280 High-Output LEDs
Dense LED array delivering 660nm red light and 810nm near-infrared light across the full panel.
Precision 30° Optical Lens System
Focuses light output to reduce loss and increase energy concentration, rather than diffusing broadly like a standard wide-angle panel.
Adjustable Power & Pulse Frequency
Power adjustable from 0 to 100%, pulse frequency adjustable from 1 to 20,000Hz, for fully customized sessions.
Smart LCD Touchscreen Control

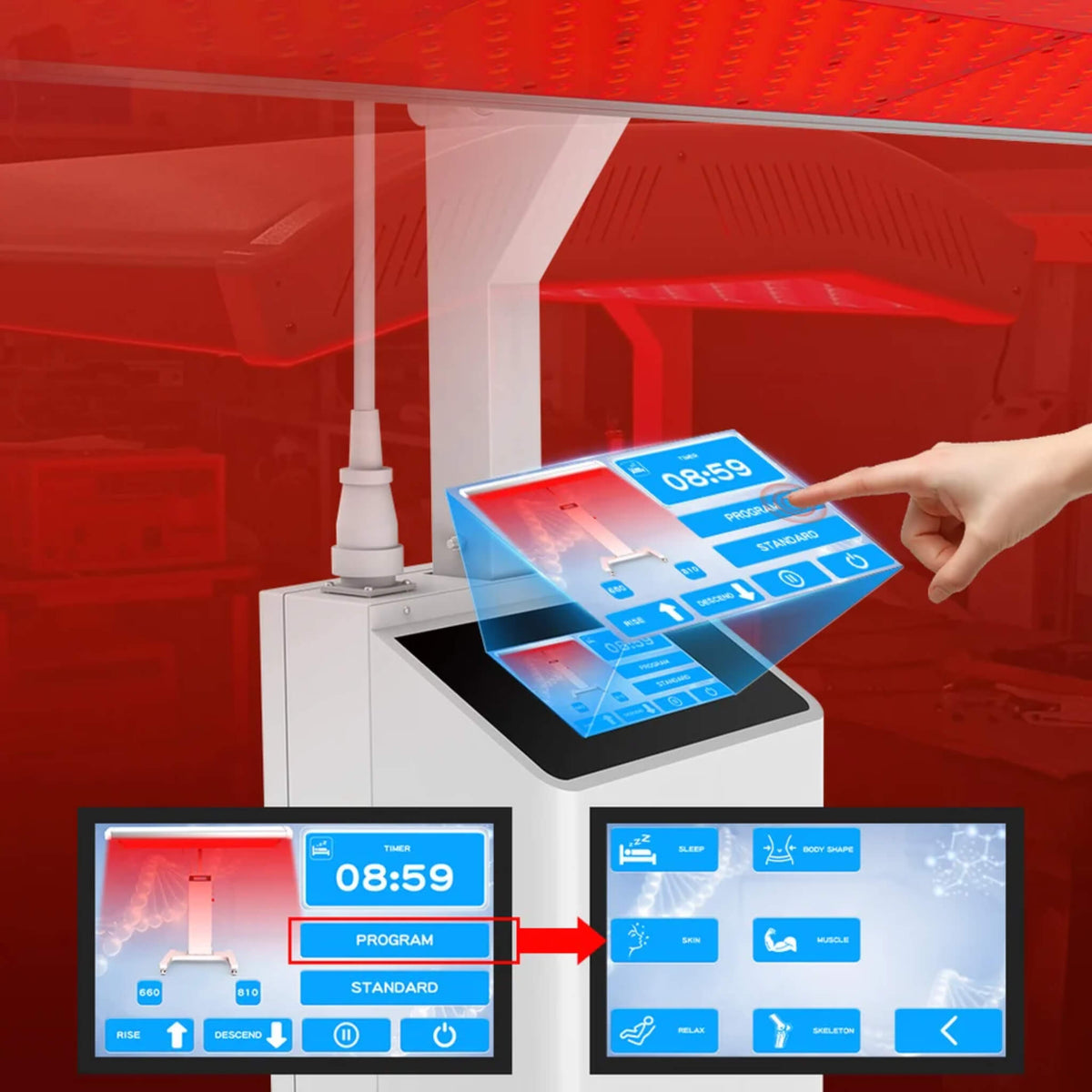

Six built-in preset programs, Sleep, Body Shape, Skin, Muscle, Relax, and Skeleton, plus a manual mode for full control over intensity and timing.
Motorized Height Adjustment
Electric lift with a maximum stroke of 400mm (15 inches), so the panel height adjusts to the treatment area or user without manual repositioning.
Heavy-Duty Mobile Stand
Smooth-rolling, locking casters for easy repositioning between rooms or treatment stations.
100,000-Hour LED Service Life
Rated for long-term daily commercial use.

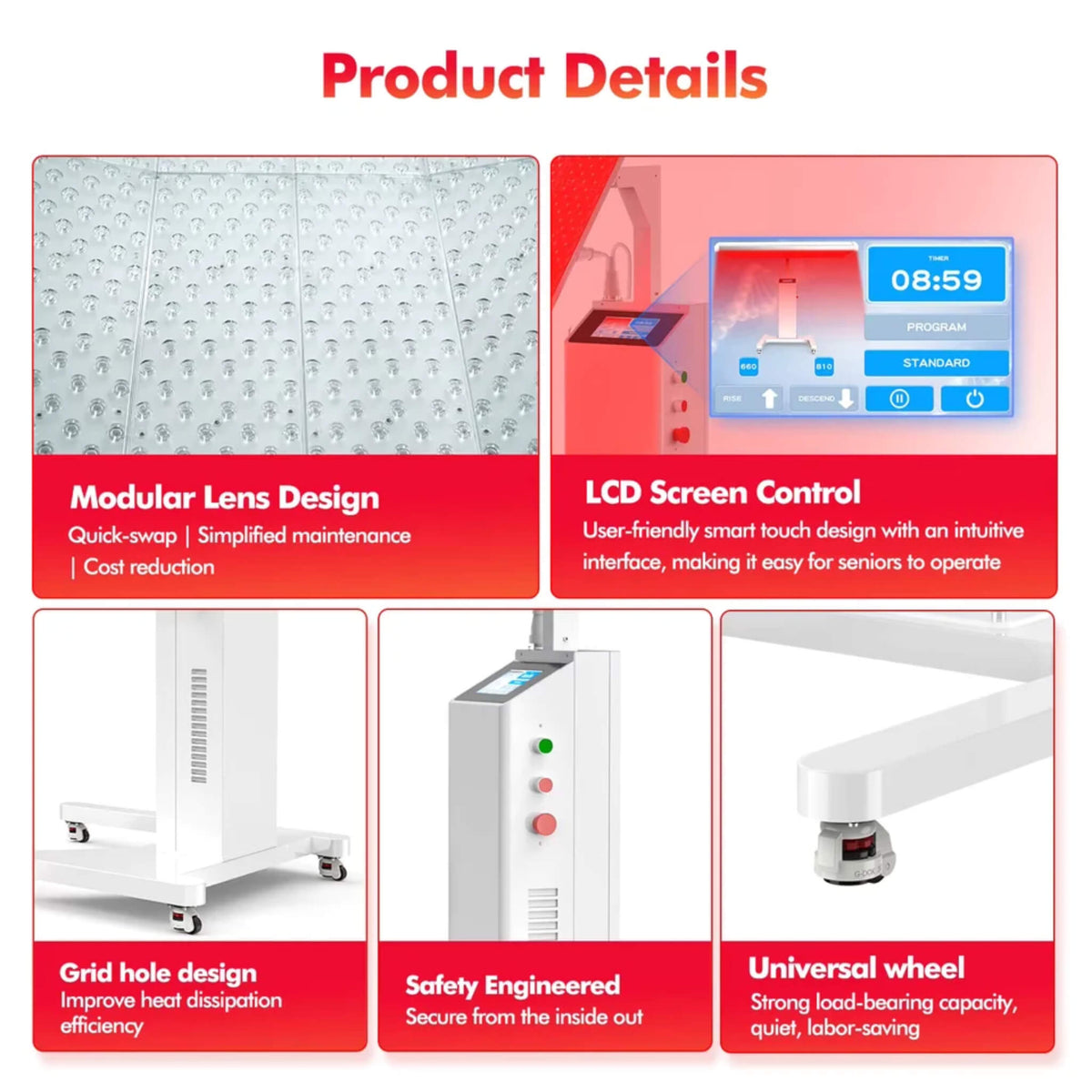

Commercial-Grade Modular Construction
Built for daily professional use, with modular design to simplify long-term maintenance.
Safety Information
Before first use, it's recommended to perform a photosensitivity test: place your arm 10cm from the panel and irradiate it for 5 minutes, then monitor for redness, swelling, or discomfort over the next 24 hours. If you have a photosensitive condition, a history of cancer, or take photosensitizing medications, consult a doctor before use.
This equipment should not be used by anyone allergic to red light, anyone who has used photosensitizing agents within the past 72 hours, anyone with relevant contraindications, or anyone experiencing active bleeding, shock, or internal organ damage. It is not intended for treating benign skin lesions (such as warts, spots, or moles) or congenital skin conditions, and is generally not recommended within 24 to 48 hours of acute trauma.
Remove contact lenses and jewelry before use, and wear the included protective goggles at all times during a session. Individuals with reduced sensory perception should use caution, as they may not detect excess heat or irritation.
This equipment is intended to be operated by trained personnel in a designated treatment setting. Use only the manufacturer-provided transformer and power outlet, and never use a multi-function adapter. Do not operate in high-temperature or high-humidity environments, or near flammable or explosive substances. Do not clean with industrial alcohol, acidic cleaners, or alkaline cleaners. Unplug and discontinue use immediately if you experience discomfort, or if you notice smoke, sparks, or damage to the power cord or outlet.
Why Buy the ProLux 1500 From Luxury Wellness Store
We are an authorized Dr. Fuji reseller. That means a genuine product, the manufacturer warranty, and a team here before and after your purchase.
We are a specialty wellness retailer, not a general marketplace. When you contact us, you reach people who know this product and can help you decide if it fits your space before you buy.
We offer a Price Match Guarantee on this product. Full terms are on our Price Match Guarantee page.
We ship free to the continental United States on every order.
Questions before you buy? Reach our team Monday through Friday, 9am to 5pm EST, at +1 (860) 590-3541 or support@luxurywellnessstore.com.
Specifications
- Model: GY-P1280
- SKU: FJ-20262
- Brand: Dr. Fuji
- LED Quantity: 1,280 LEDs
- Wavelengths: 660nm Red + 810nm Near Infrared
- Lens Angle: 30° Optical Lens
- LED Service Life: 100,000 Hours
- Output Power: 1500W
- Voltage: AC 100–240V
- Irradiance: 100–300mW/cm²
- Power Adjustment: 0–100%
- Pulse Frequency: 1–20,000Hz
- Treatment Timer: 1–30 Minutes
- Control: Smart LCD Touchscreen, 6 Preset Programs + Manual Mode
- Dimensions (Collapsed): 1820mm × 690mm × 1490mm (72" × 27" × 59")
- Maximum Height (Extended): 1890mm (74")
- Maximum Lift Stroke: 400mm (15")
- Base Dimensions: 1100mm × 800mm (43" × 31")
- Net Weight: 105.4 kg (232 lbs)
- Mobility: Locking Casters
- Certifications: CE, FCC, PSE
- Warranty: Manufacturer Warranty
What's Included
- Dr.Fuji® ProLux 1500 Red Light Therapy System (Main Unit & Light Panel Body)
- Professional Mobile Stand
- Smart LCD Touchscreen Controller
- Connection Cable
- Power Cable
- Rotating Shaft
- Protective Goggles (2 Pairs)
- Assembly Hardware
- User Manual
FAQ
Is this a medical device?
No. This product is intended to support general wellness and is not designed to diagnose, treat, cure, or prevent any disease.
What's the difference between the 660nm and 810nm wavelengths?
660nm is red light, which works at the surface level. 810nm is near-infrared light, which reaches deeper beneath the surface. Combining both wavelengths is intended to support a broader range of full-body applications in a single session.
What does the 30° optical lens actually do?
It focuses the light output instead of letting it diffuse broadly the way a standard wide-angle panel does, concentrating more energy at the treatment surface.
Do I need to wear eye protection?
Yes. Protective goggles are required during every session and are included with your purchase.
Should I test my skin before first use?
Yes, a photosensitivity test is recommended: hold your arm 10cm from the panel for 5 minutes, then monitor for redness, swelling, or discomfort over the next 24 hours before your first full session.
Who should not use this equipment?
Anyone allergic to red light, anyone who has used photosensitizing medications within the past 72 hours, anyone with relevant contraindications, or anyone with active bleeding, shock, or internal organ damage should not use this equipment. Consult a doctor first if you have a photosensitive condition, a history of cancer, or take photosensitizing medications.
What preset programs are included?
Six built-in programs: Sleep, Body Shape, Skin, Muscle, Relax, and Skeleton, in addition to a fully customizable manual mode.
Can I adjust the settings manually?
Yes. Manual mode lets you set power from 0 to 100% and pulse frequency from 1 to 20,000Hz independently of the preset programs.
How much space and height clearance do I need?
The panel measures 1820mm × 690mm × 1490mm (72" × 27" × 59") collapsed, extending up to 1890mm (74") with a maximum lift stroke of 400mm (15"). The base footprint is 1100mm × 800mm (43" × 31").
Does this require professional installation or operation?
The ProLux 1500 requires assembly before first use, attaching the casters to the base, mounting the main unit, installing the rotating shaft, and connecting the light panel body, using the included hardware and tools. Once assembled, it's intended to be operated by trained personnel in a designated treatment setting, consistent with its commercial-grade design.
What payment options are available?
We offer several payment methods, including PayPal and Shop Pay. Shop Pay offers pay-over-time options, availability and terms depend on the customer's account and eligibility.
How long does shipping take?
Orders are typically processed within 5 to 9 business days after payment is received. Delivery time depends on your location. Tracking details will be emailed once your order ships. Delivery is curbside or driveway drop-off only.
This product is intended to support general wellness and is not intended to diagnose, treat, cure, or prevent any disease. Always consult a qualified healthcare professional before use, particularly if you have a photosensitive condition, a history of cancer, are pregnant, or are taking medications that increase light sensitivity.
