Cover Your Back, Shoulders or Legs Without a Full Body Panel
A small panel means treating one spot at a time, and the full body models in the Total Spectrum line stand over 5 feet tall. The RLT Home Total Spectrum COMPACT is the middle ground for red light therapy at home. This medium red light therapy panel is about 2.5 feet tall and 1 foot wide, sized for the back, shoulders or legs, with all 7 Total Spectrum wavelengths.

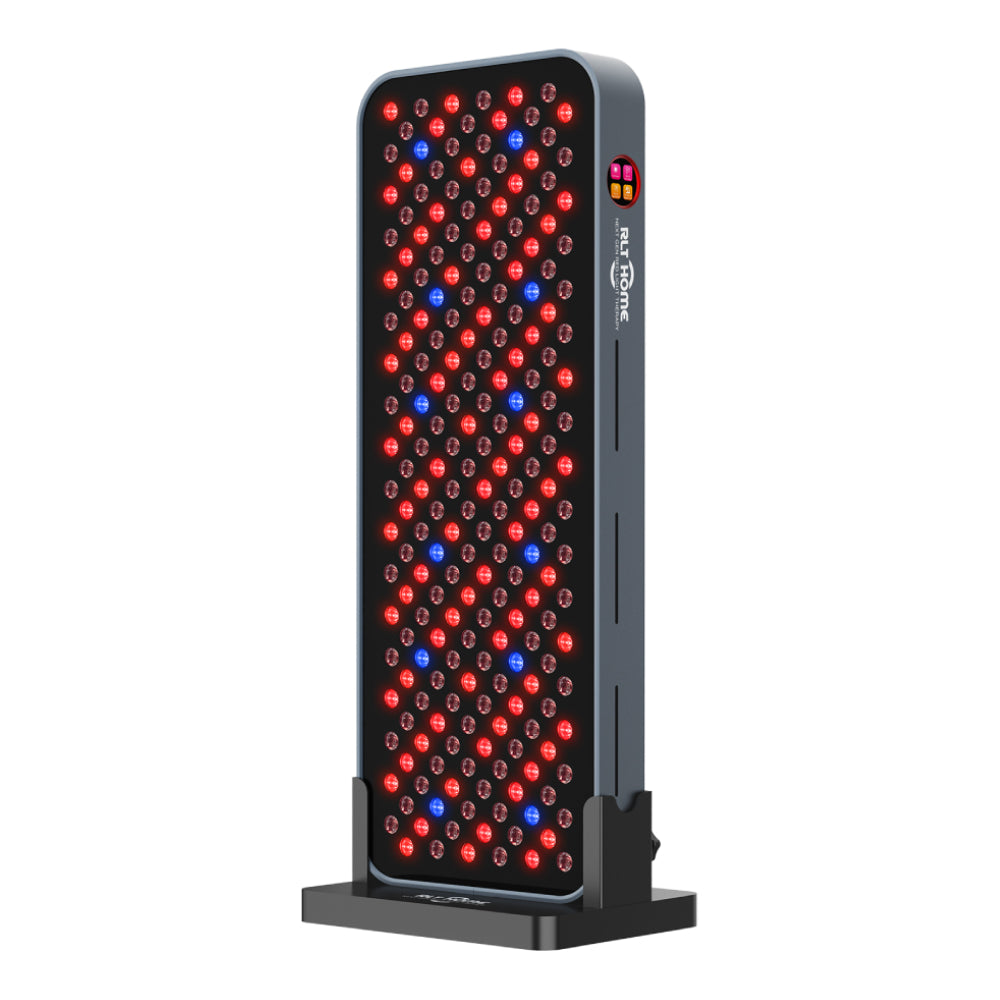

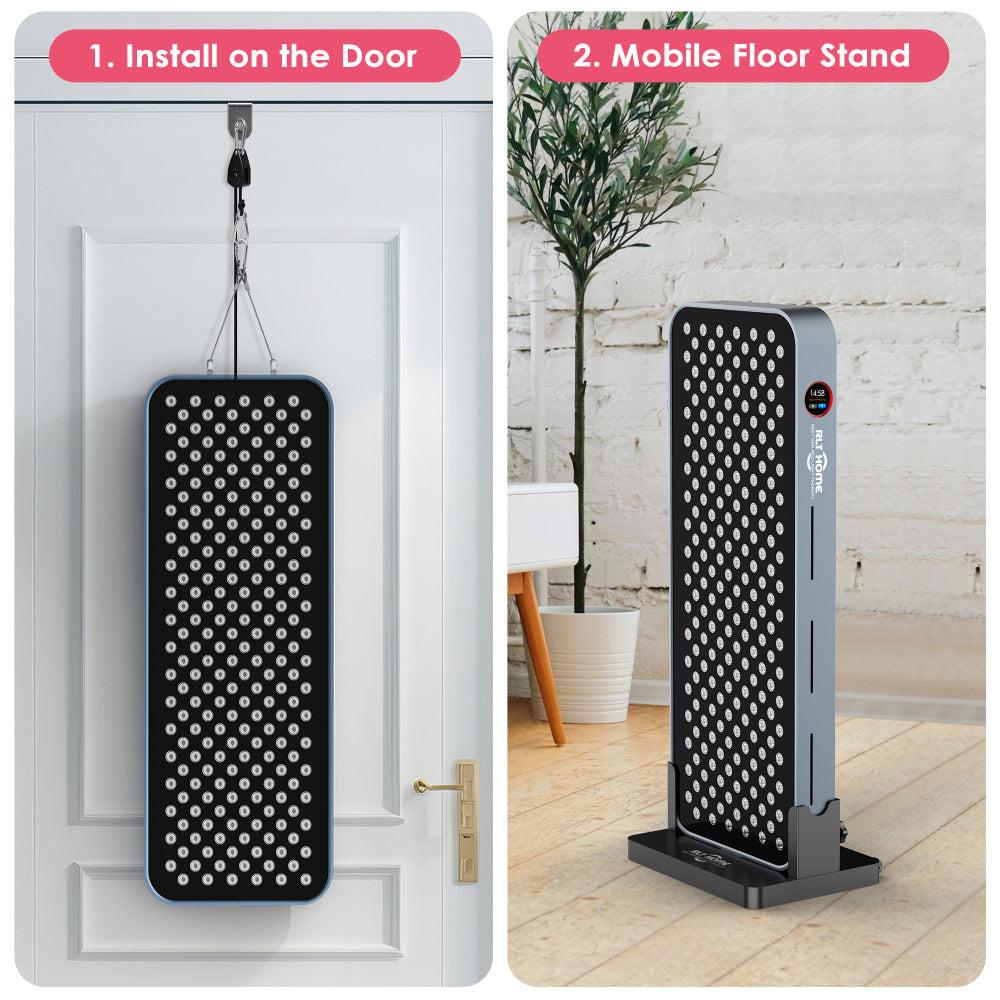

Two ways to set it up. Stand it on the included vertical stand, which has wheels on one edge, or hang it with the included door hanging kit.
HSA/FSA eligible. Many HSA and FSA plans cover this type of device, though eligibility varies by provider. Check with your plan administrator before ordering.
How Does the RLT Home Total Spectrum COMPACT Actually Work
Red light therapy shines specific wavelengths of light onto the skin. Red light works near the surface, while near infrared and infrared light reach deeper tissue.

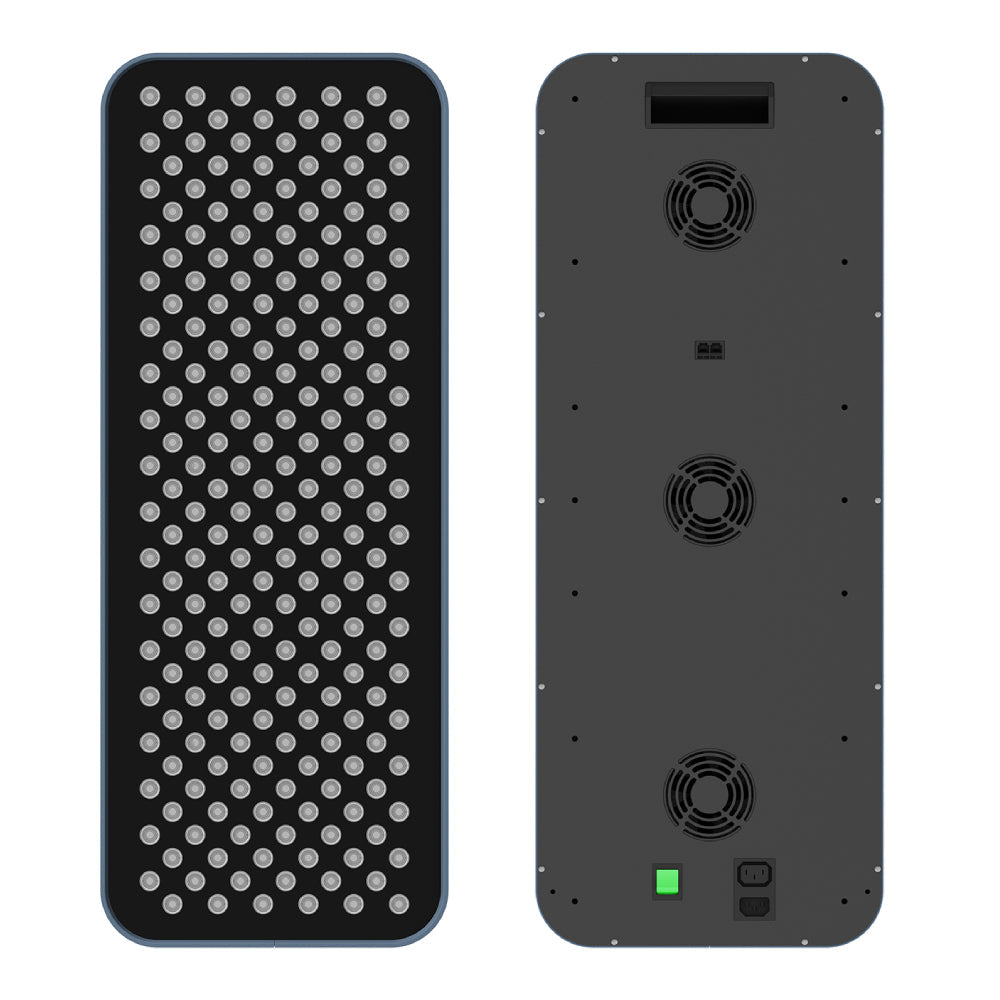

The RLT Home Total Spectrum COMPACT uses 216 LEDs at 5W each across 7 wavelengths, with a 30 degree beam angle to keep the light focused. RLT Home measured 172 mW/cm² at 8 inches with a solar power meter and 99.0 mW/cm² at 6 inches with a spectrometer, and posts the third party test images on their site.
RLT Home Total Spectrum COMPACT vs MINI vs MAX, What's Actually Different
All three share the same 7 wavelengths, the same wavelength mix and the same 9 preset modes. What changes is the size of the area each one covers.
- The RLT Home Total Spectrum MINI has 72 LEDs for small areas like the face, hands, feet or joints.
- The RLT Home Total Spectrum COMPACT has 216 LEDs for medium areas like the back, shoulders or legs.
- The RLT Home Total Spectrum MAX has 360 LEDs for large areas like the torso, thighs or abdomen.
If one spot at a time feels too slow but you don't need to cover your whole torso at once, the RLT Home Total Spectrum COMPACT is the middle size.

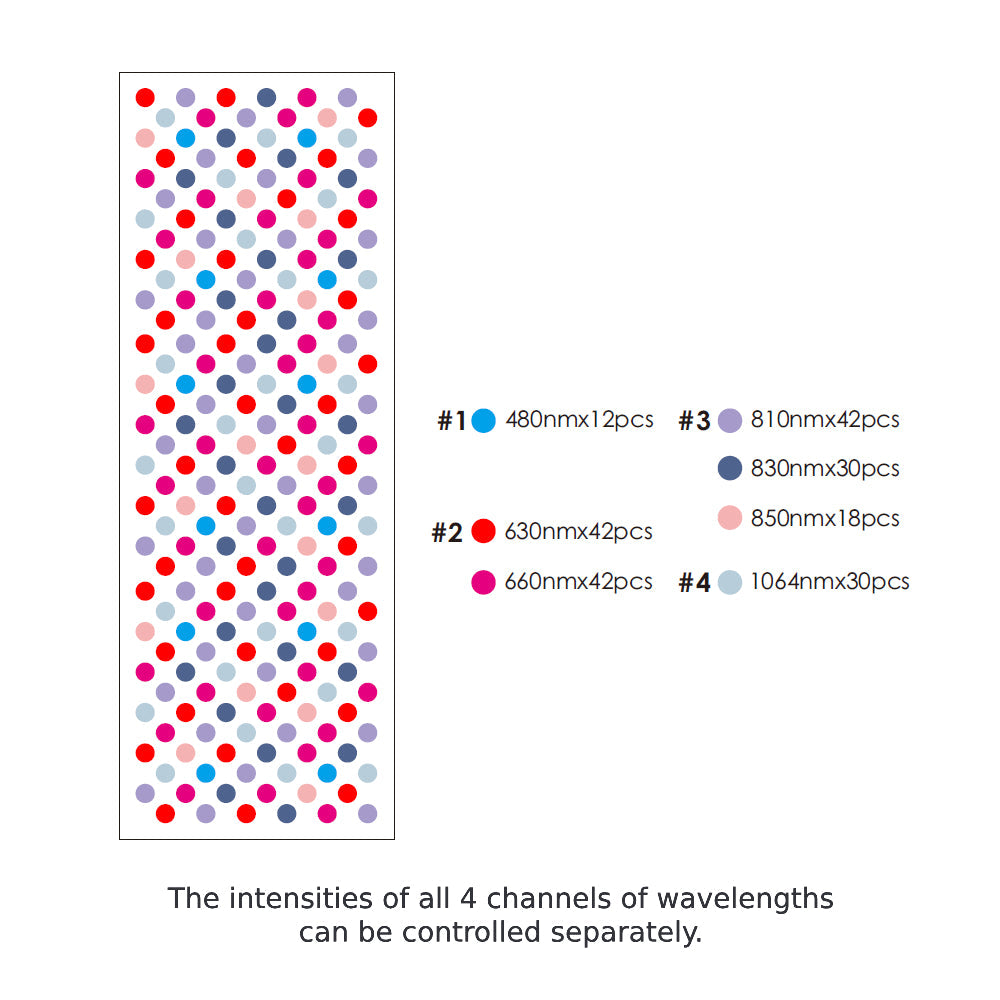

What Do 7 Wavelengths Actually Mean
Many red light panels stop at fewer wavelengths. The RLT Home Total Spectrum COMPACT spreads its LEDs across 7, a mix RLT Home built from thousands of published human studies. Each wavelength takes a set share of the LEDs and, according to RLT Home, reaches a different depth.
- 480nm blue light, 6% of LEDs, under 0.5 mm (0.02 in)
- 630nm red light, 19%, 1 to 2 mm (0.04 to 0.08 in)
- 660nm red light, 19%, 2 to 5 mm (0.08 to 0.2 in)
- 810nm near infrared, 19%, 20 to 30 mm (0.8 to 1.2 in)
- 830nm near infrared, 14%, 30 to 40 mm (1.2 to 1.6 in)
- 850nm near infrared, 9%, 30 to 50 mm (1.2 to 2 in)
- 1064nm infrared, 14%, 50 to 70 mm (2 to 2.8 in)
What Results Can You Actually Expect
Red and near infrared light are widely studied for skin, muscle recovery, circulation and sleep. Results vary from person to person. This device is not meant to diagnose, treat, cure, or prevent any medical condition.
Product Features
216 LEDs Across 7 Wavelengths
Blue, red, near infrared and infrared from 480nm to 1064nm.
Sized for Medium Areas
About 2.5 feet tall and 1 foot wide for the back, shoulders or legs.

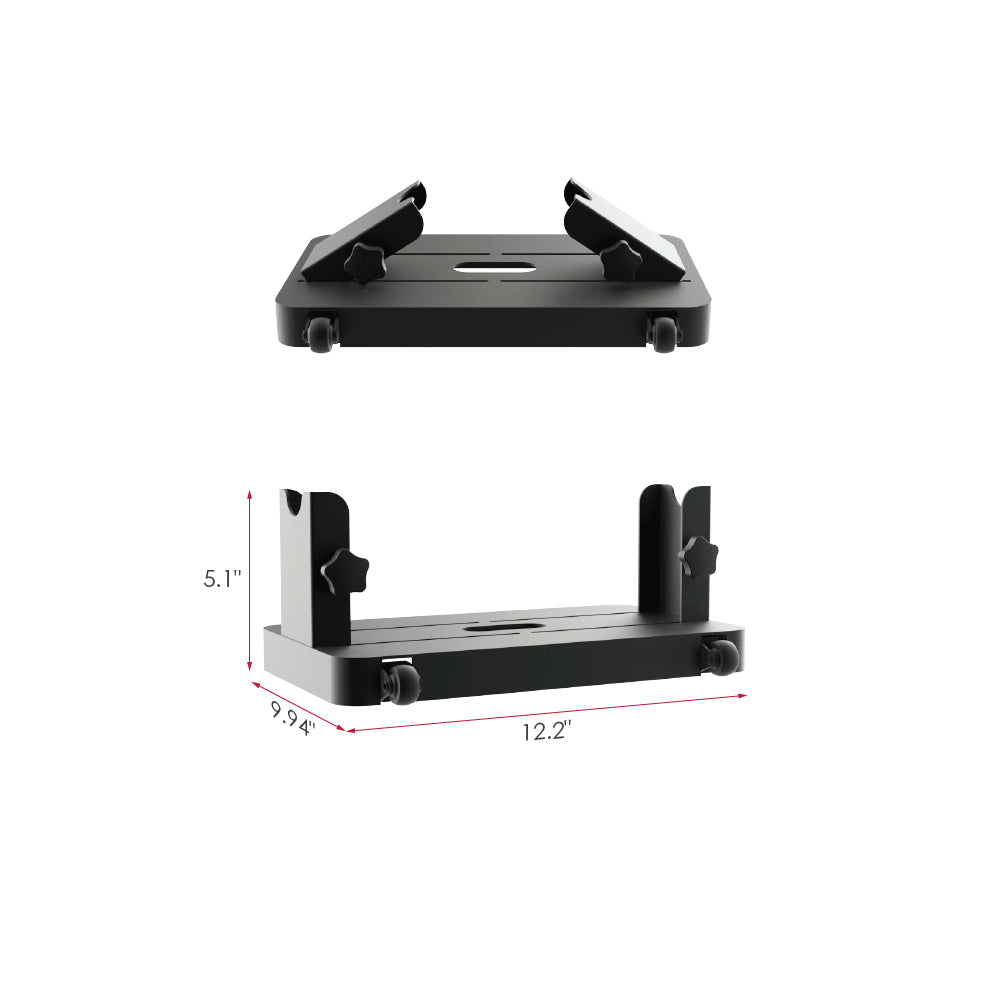

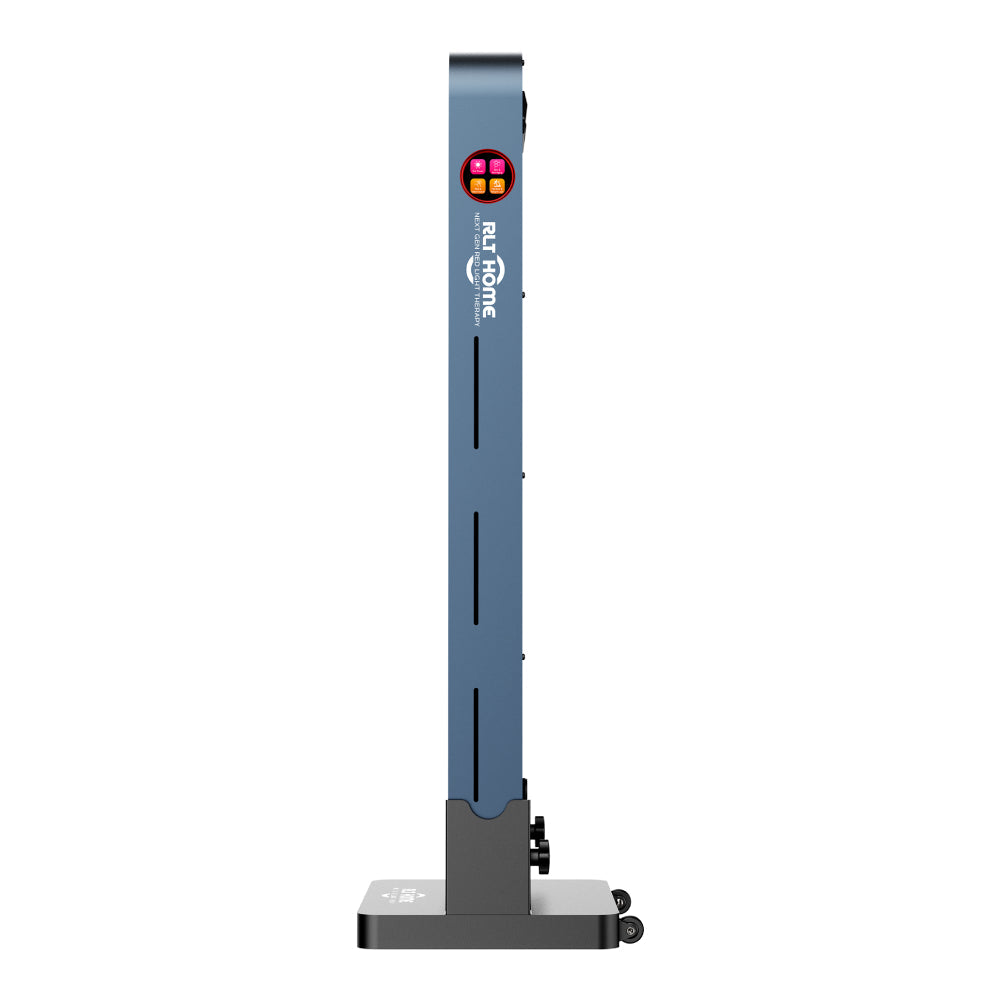

Vertical Stand With Wheels
The included stand has wheels on one edge.
9 Preset Modes Plus Custom
Preset modes for skin, sleep, hair, recovery and more, plus a custom mode.
Individual Channel Control
In custom mode, set intensity and pulsing for red, blue, near infrared and 1064nm separately.
Adjustable Pulsing, 0 to 5,000 Hz
Set pulsing per channel, or set it to 0 for steady light.
Touch Panel and Remote
Adjust settings on the panel or from across the room.
No App, No Internet
It does not connect to apps or the internet, so it does not share your data.
Aluminum Housing
Aluminum body.
100,000 Hour LED Life
Rated for over 11 years of continuous use.
Two Kinds of Eye Protection
Reading friendly protective glasses and blackout goggles are both included.
FDA Registered Class II Device
Listed with the FDA as a Class II medical device, plus CE and RoHS certified.
Safety Information
No flicker. The LEDs do not strobe.
Near zero EMF. About 0.0 μT at 6 inches or greater, measured with a Cornet EMF meter and independently verified by 2 labs.
If you are pregnant, have a medical condition or take medication, talk with your healthcare provider before use.
Why Buy the RLT Home Total Spectrum COMPACT From Luxury Wellness Store
We are an authorized RLT Home reseller. That means a genuine product, the manufacturer warranty, and a team here before and after your purchase.
We are a specialty wellness retailer, not a general marketplace. When you contact us, you reach people who know this product and can help you decide if it fits your space before you buy.
We offer a Price Match Guarantee on this product. Full terms are on our Price Match Guarantee page.
We ship free to the continental United States on every order.
Questions before you buy? Reach our team Monday through Friday, 9am to 5pm EST, at +1 (860) 590-3541 or support@luxurywellnessstore.com.
Specifications
- Model: Total Spectrum COMPACT
- Number of LEDs: 216
- LED Type: 3535 LED, 5W
- Wavelengths: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, 1064nm
- Irradiance: 172 mW/cm² at 8 inches (solar power meter), 99.0 mW/cm² at 6 inches (spectrometer)
- Beam Angle: 30 degrees
- EMF: about 0.0 μT at 6 inches or greater
- Flicker: None
- Pulsing: 0 to 5,000 Hz
- Modes: 9 preset modes plus custom mode
- Controls: Touch panel and remote
- Power Consumption: 280W
- Voltage: AC 100 to 240V
- LED Lifespan: 100,000 hours
- Housing: Aluminum

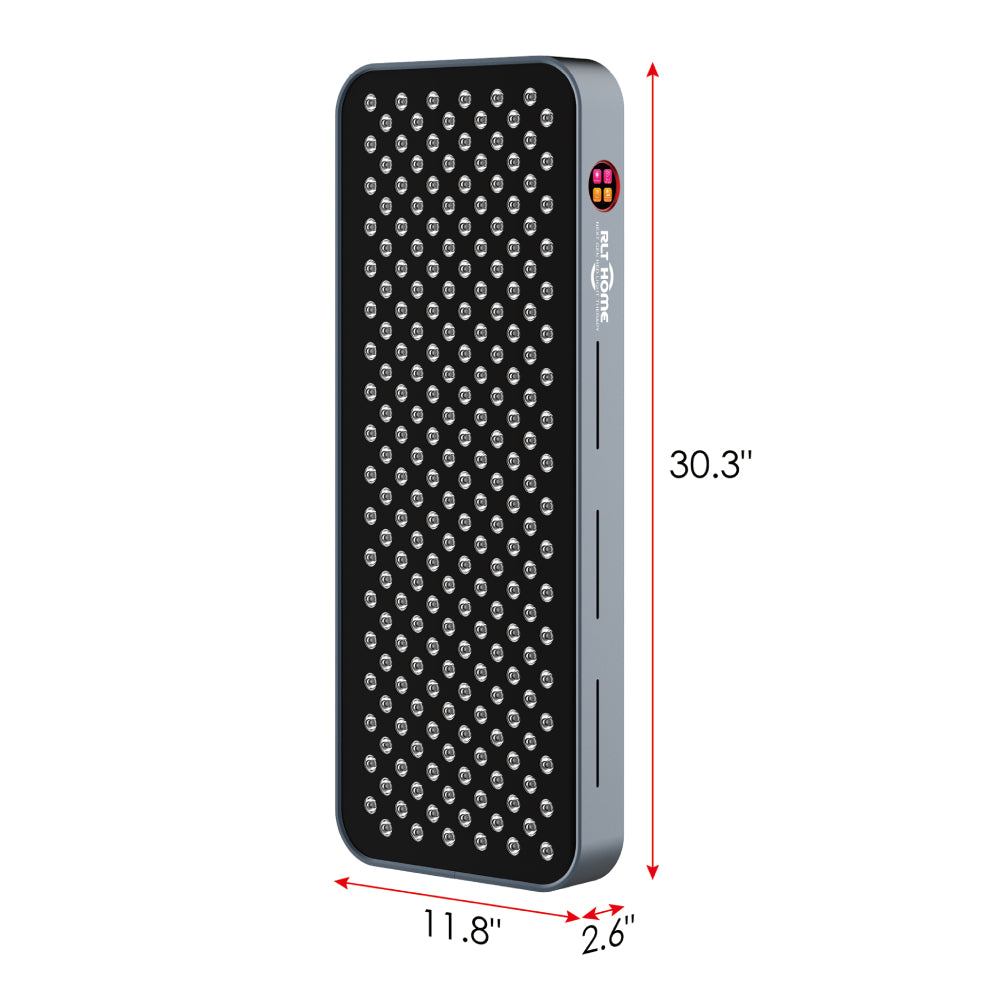

- Device Size: 770 x 300 x 65 mm (30.3 x 11.8 x 2.6 in)
- Device Weight: 10 kg (22 lb)
- Shipping Box Size: 850 x 380 x 180 mm (33 x 15 x 7 in)
- Shipping Weight: 12 kg (26.5 lb)
- Treatment Area: Medium
- Certifications: FDA Registered Class II, CE, RoHS
- Warranty: Manufacturer Warranty

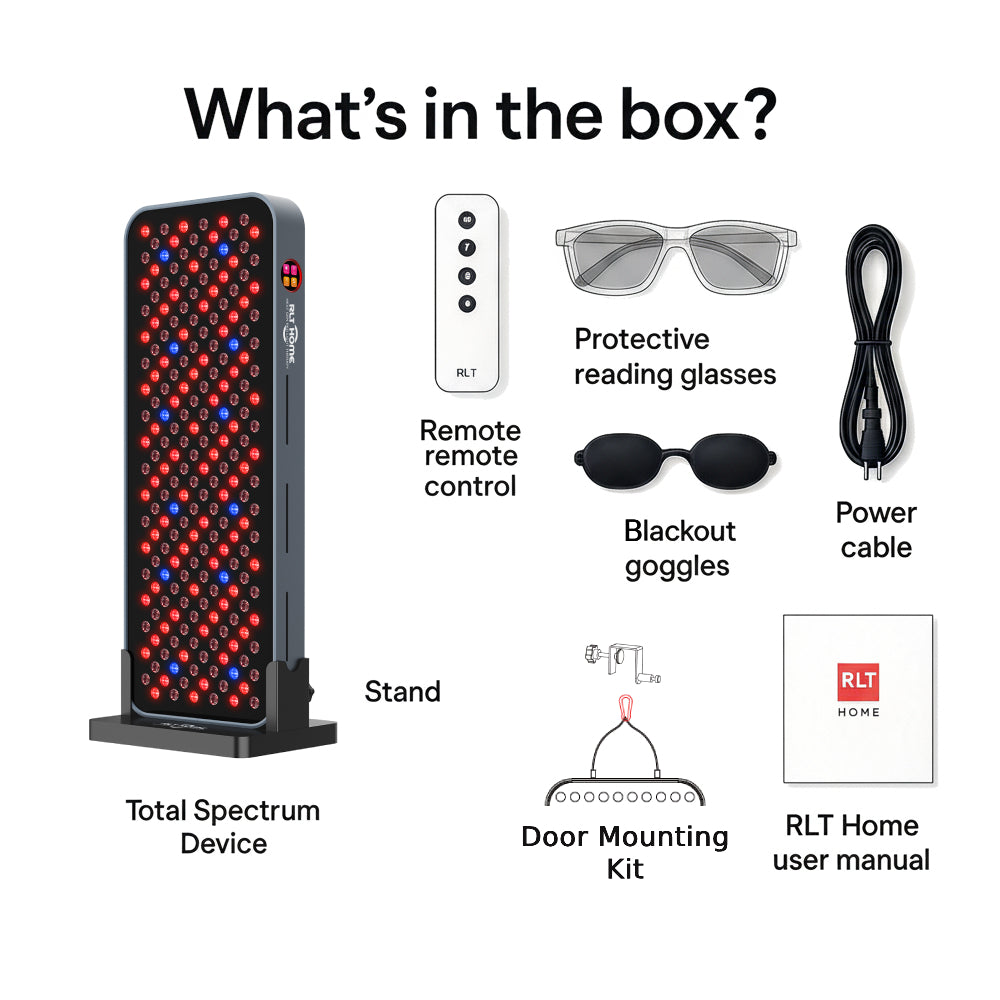

What's Included
- Total Spectrum COMPACT device
- Stand
- Remote control
- Protective reading glasses
- Blackout goggles
- Door hanging kit
- RLT Home user manual
- Power cable
FAQ
What is the difference between the RLT Home Total Spectrum COMPACT and the RLT Home Total Spectrum MINI?
Both use the same 7 wavelengths and 9 preset modes. The RLT Home Total Spectrum COMPACT has 216 LEDs for medium areas like the back, shoulders or legs. The RLT Home Total Spectrum MINI has 72 LEDs for small areas like the face or a joint.
What is the difference between the RLT Home Total Spectrum COMPACT and the RLT Home Total Spectrum MAX?
Both use the same 7 wavelengths and 9 preset modes. The RLT Home Total Spectrum COMPACT has 216 LEDs and is about 2.5 feet tall. The RLT Home Total Spectrum MAX has 360 LEDs and is about 4 feet tall for large areas like the torso, thighs or abdomen.
Is the RLT Home Total Spectrum COMPACT big enough for full body sessions?
No. It is made for medium areas like the back, shoulders or legs. For full body coverage, look at a larger model in the Total Spectrum line.
How big is it?
The panel measures 770 x 300 x 65 mm (30.3 x 11.8 x 2.6 in) and weighs 10 kg (22 lb).
Does it come with a stand?
Yes. It includes a vertical stand with wheels on one edge.

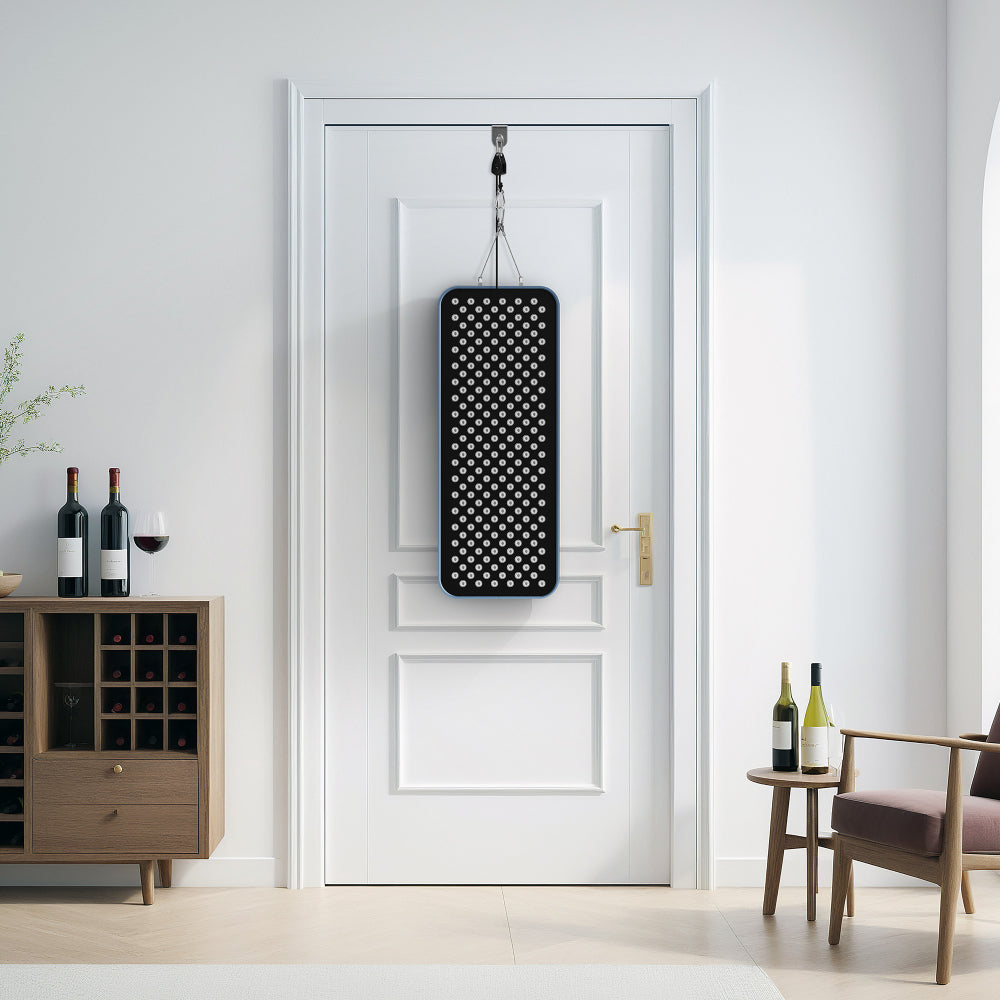

Can I hang it on a door instead?
Yes. A door hanging kit is included.
Why does it come with two kinds of eye protection?
You get reading friendly protective glasses and blackout goggles, so you can choose what suits each session.
Does it need an app or Wi-Fi?
No. You control it with the touch panel or the remote. It does not connect to the internet or share your data.
Can I turn off the pulsing?
Yes. Pulsing runs from 0 to 5,000 Hz and can be set per channel in custom mode. Set it to 0 for steady light.
What are the preset modes for?
The 9 preset modes are built for goals like skin, sleep, hair and recovery. Custom mode lets you set your own intensity and pulsing.
Does the light flicker?
No. It is flicker free.
How much EMF does it give off?
About 0.0 μT at 6 inches or greater, measured with a Cornet EMF meter and verified by 2 independent labs.
How strong is the light output?
RLT Home measured 172 mW/cm² at 8 inches with a solar power meter and 99.0 mW/cm² at 6 inches with a spectrometer.
Does it work with a standard US outlet?
Yes. It runs on AC 100 to 240V and uses 280W.
How long do the LEDs last?
The LEDs are rated for 100,000 hours, over 11 years of continuous use.
Is the RLT Home Total Spectrum COMPACT FDA registered?
Yes. It is listed with the FDA as a Class II medical device and is CE and RoHS certified.
Can I use my HSA or FSA card for this purchase?
Many HSA and FSA plans cover this type of device, but eligibility varies by provider. Please verify with your plan administrator before ordering.
What payment options are available?
We offer several payment methods, including PayPal and Shop Pay. Both PayPal and Shop Pay offer pay-over-time options, availability and terms depend on the customer's account and eligibility.
How long does shipping take?
In-stock orders are typically delivered within 8 business days. You'll get a shipping confirmation email with tracking once it ships. Full details on our Shipping Policy.
Luxury Wellness Store is an authorized reseller of RLT Home products. This device is not intended to diagnose, treat, cure, or prevent any medical condition. Individual results may vary. Consult a healthcare provider before use if you are pregnant, have a medical condition, or are taking medication.
