The Largest Red Light Therapy Panel in the Total Spectrum Line
The other full body panel in the Total Spectrum line, the RLT Home Total Spectrum ULTRA, is about 1 ft wide. The RLT Home Total Spectrum ELITE doubles that to about 2 ft wide and stands about 5 ft 5 in tall, with 864 LEDs, the most in the line. This full body red light therapy panel comes with a heavy duty electric stand, so you can stand in front of it or lie under it. RLT Home describes it as a premium device for full body home or commercial use.

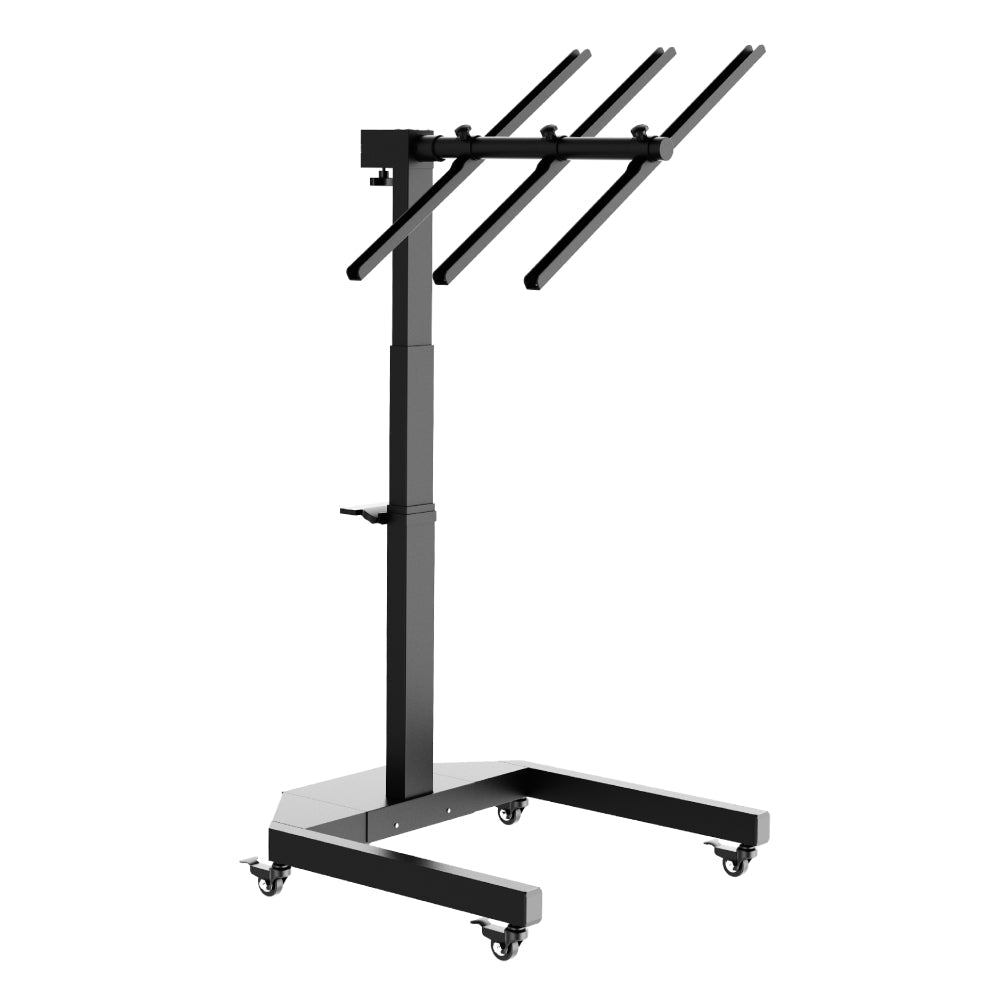

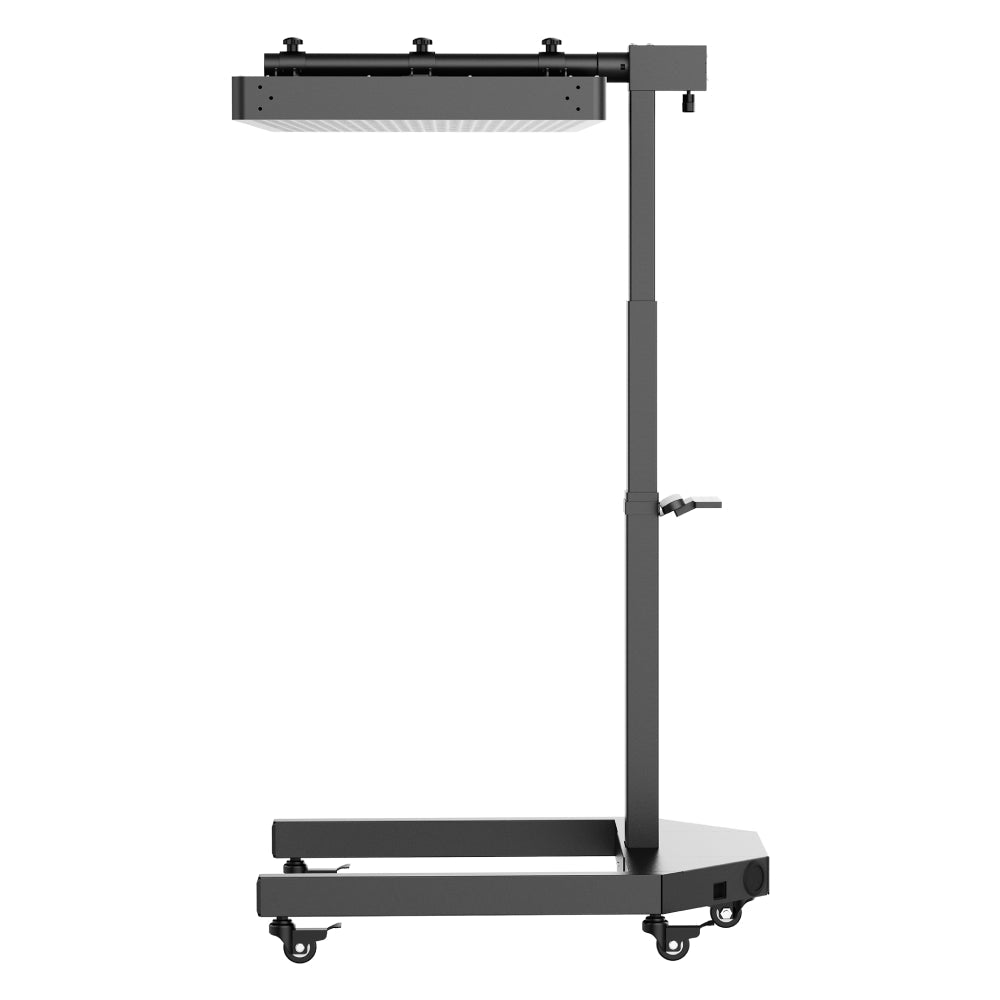

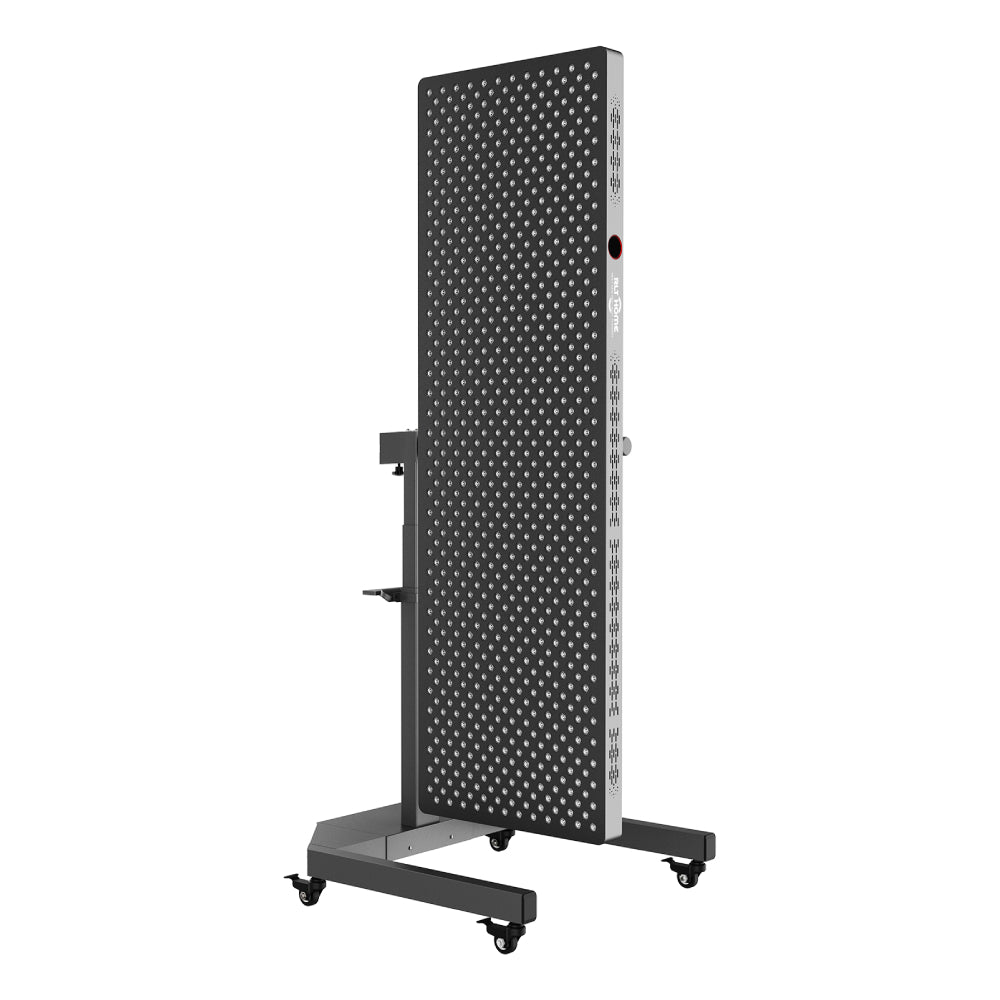

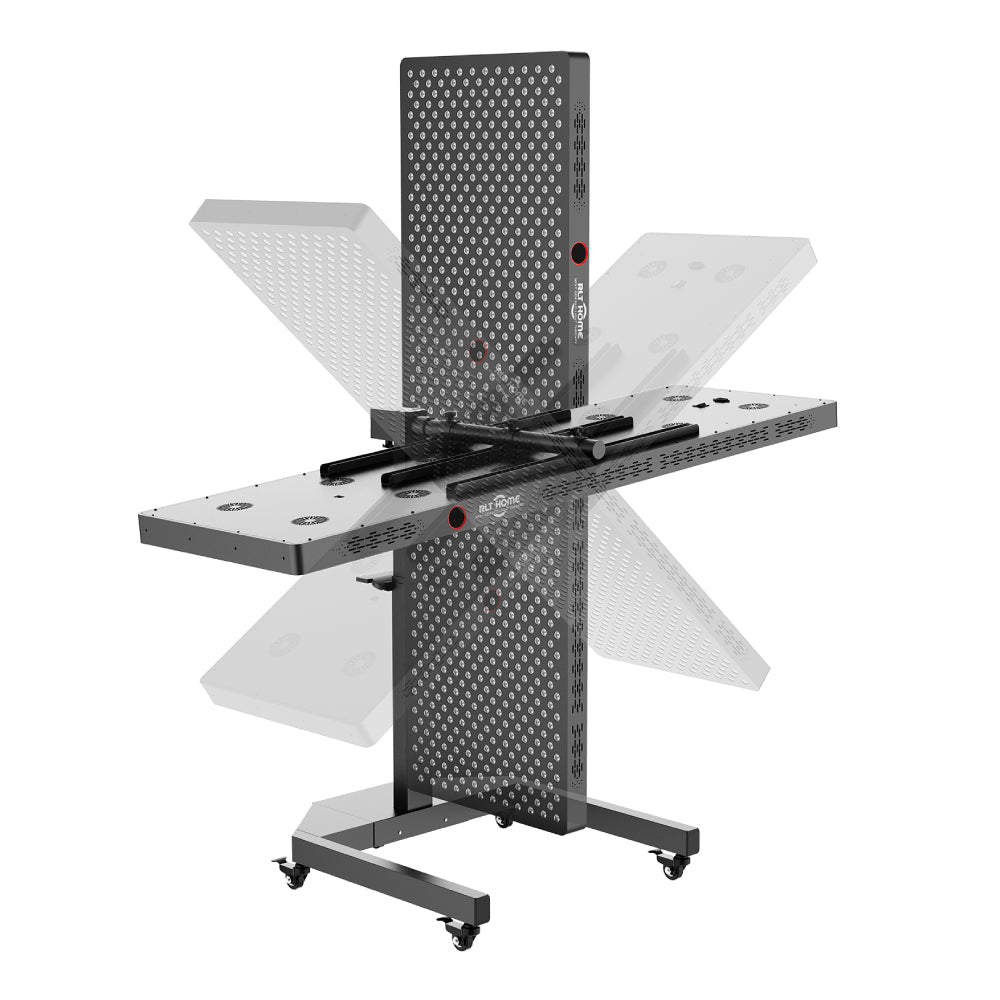

Electric stand included. It holds the panel vertical or horizontal, adjusts from 29 in to 64 in off the ground and takes up about 3 ft by 3 ft. RLT Home lists its clearance under a bed or massage table as 5.5 in with wheels and 3 in without.
HSA/FSA eligible. Many HSA and FSA plans cover this type of device, though eligibility varies by provider. Check with your plan administrator before ordering.
How Does the RLT Home Total Spectrum ELITE Actually Work
Red light therapy shines specific wavelengths of light onto the skin. Red light works near the surface, while near infrared and infrared light reach deeper tissue.
The RLT Home Total Spectrum ELITE uses 864 LEDs at 5W each across 7 wavelengths, with a 30 degree beam angle. RLT Home measured 179 mW/cm² at 8 inches with a solar power meter and 121.62 mW/cm² at 6 inches with a spectrometer, the highest readings in RLT Home's Total Spectrum comparison table, and posts the third party test images on its site. You control it with the touch panel or the included remote.
RLT Home Total Spectrum ELITE vs ULTRA, What's Actually Different
Both are full body panels with the same 7 wavelengths, 9 preset modes and the same size of electric stand for standing or lying down.
- The RLT Home Total Spectrum ULTRA has 480 LEDs in a panel about 5 ft 4 in tall and 1 ft wide. It uses mixed 15, 30 and 60 degree lenses and touch and voice controls with no remote.
- The RLT Home Total Spectrum ELITE has 864 LEDs in a panel about 5 ft 5 in tall and 2 ft wide. It uses 30 degree lenses and touch and remote controls.
If you want the widest panel and the most LEDs in the line, the RLT Home Total Spectrum ELITE is the fit.
What Does Irradiance Actually Mean
Irradiance is how much light power reaches a given area of skin, measured in milliwatts per square centimeter (mW/cm²). The number changes with distance and with the meter used, so a reading is most useful when both are stated. That is why RLT Home lists two readings for the RLT Home Total Spectrum ELITE: 179 mW/cm² at 8 inches on a solar power meter and 121.62 mW/cm² at 6 inches on a spectrometer.

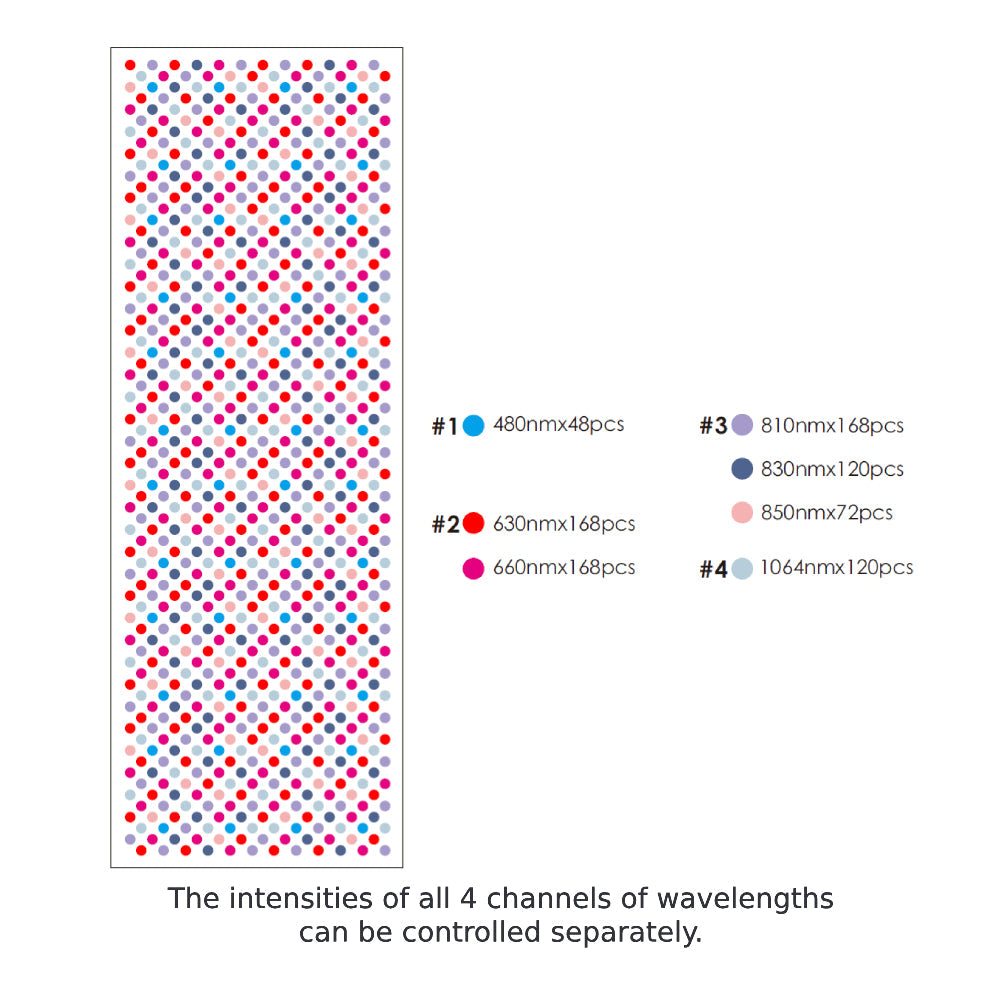

What Do 7 Wavelengths Actually Mean
The RLT Home Total Spectrum ELITE splits its LEDs across 7 wavelengths, a mix RLT Home built from thousands of published human studies. According to RLT Home, each reaches a different depth.
- 480nm blue light, 6% of LEDs, under 0.5 mm (0.02 in)
- 630nm red light, 19%, 1 to 2 mm (0.04 to 0.08 in)
- 660nm red light, 19%, 2 to 5 mm (0.08 to 0.2 in)
- 810nm near infrared, 19%, 20 to 30 mm (0.8 to 1.2 in)
- 830nm near infrared, 14%, 30 to 40 mm (1.2 to 1.6 in)
- 850nm near infrared, 9%, 30 to 50 mm (1.2 to 2 in)
- 1064nm infrared, 14%, 50 to 70 mm (2 to 2.8 in)
What Results Can You Actually Expect
Red and near infrared light are widely studied for skin, muscle recovery, circulation and sleep. Results vary from person to person. This device is not meant to diagnose, treat, cure, or prevent any medical condition.
Product Features
864 LEDs Across 7 Wavelengths
The most LEDs in the Total Spectrum line, from 480nm blue to 1064nm infrared.
2 ft Wide Full Body Panel
About 5 ft 5 in tall and 2 ft wide.
Highest Irradiance in RLT Home's Comparison Table
179 mW/cm² at 8 inches and 121.62 mW/cm² at 6 inches, per RLT Home.

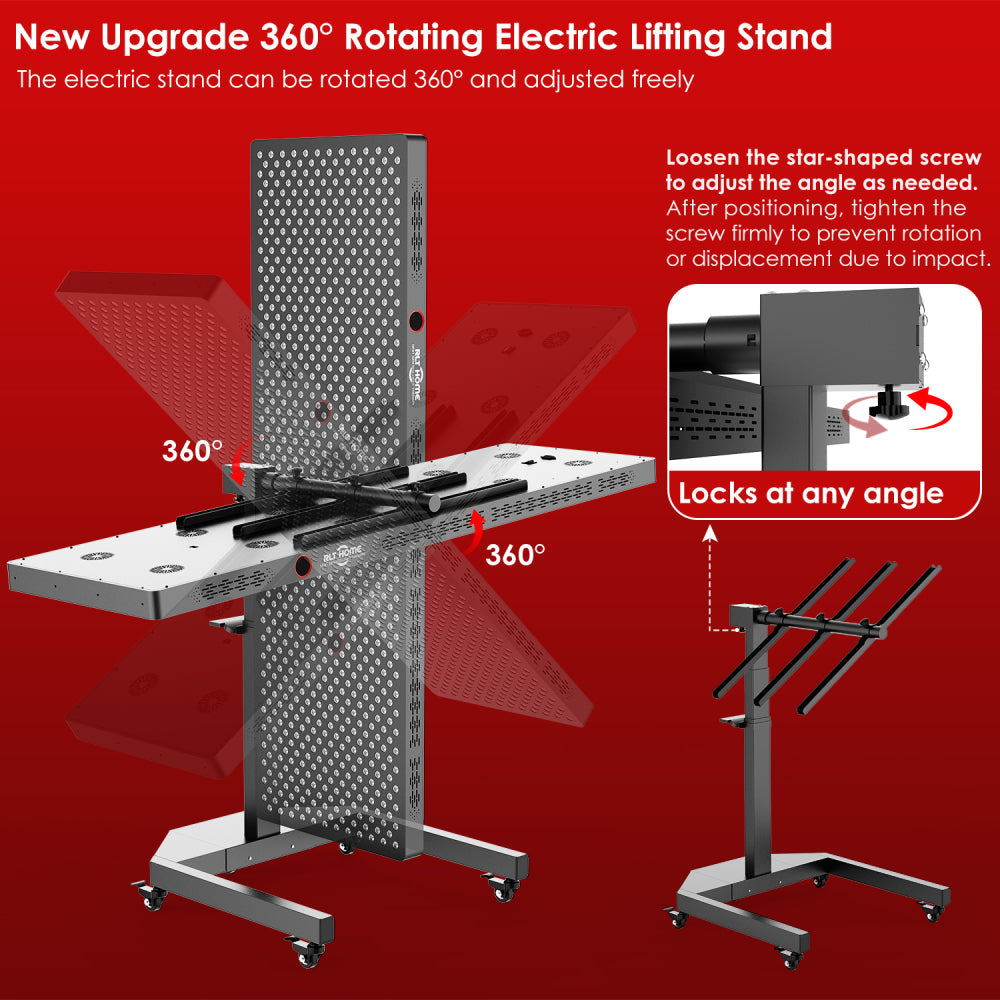

Electric Stand for Standing or Lying Down
Holds the panel vertical or horizontal and adjusts from 29 in to 64 in off the ground.

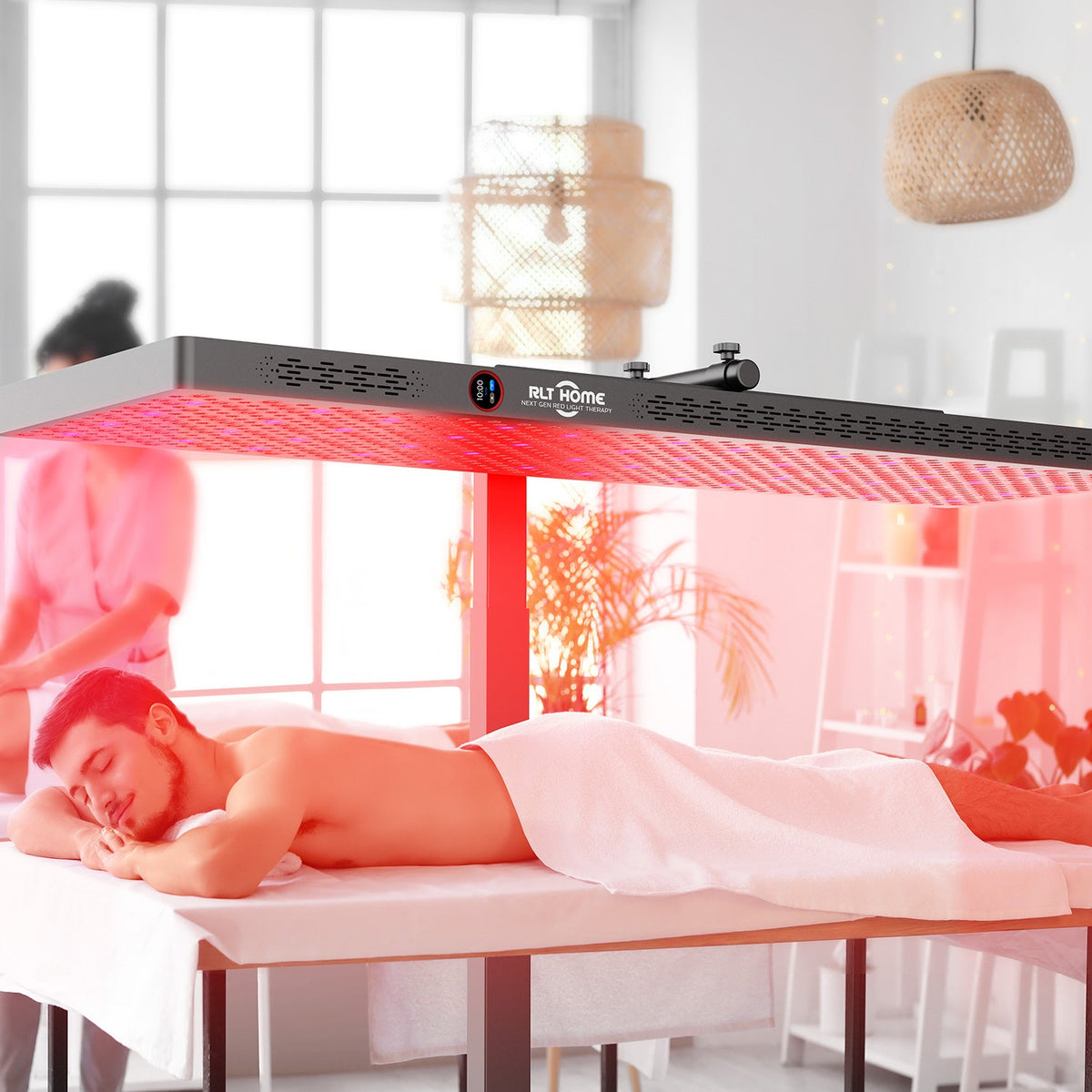

Fits Over a Bed or Massage Table
RLT Home lists the installed stand's clearance under a bed or massage table as 5.5 in with wheels and 3 in without.
Home or Commercial Use
RLT Home describes it as a premium device for full body home or commercial use.
Touch Panel and Remote
Adjust settings on the panel or from anywhere in the room.
9 Preset Modes Plus Custom
Preset modes for skin, sleep, hair, recovery and more, plus a custom mode.
Individual Channel Control
In custom mode, set intensity and pulsing for red, blue, near infrared and 1064nm separately.
Adjustable Pulsing, 0 to 5,000 Hz
Set pulsing per channel, or set it to 0 for steady light.
Privacy First, No Data Sharing
RLT Home lists this panel as privacy first with no data sharing.
100,000 Hour LED Life
Rated for over 11 years of continuous use.
Two Kinds of Eye Protection
Reading friendly protective glasses and blackout goggles are both included.
FDA Registered Class II Device
Listed with the FDA as a Class II medical device, plus CE and RoHS certified.
Safety Information
No flicker. The LEDs do not strobe.
Near zero EMF. About 0.0 μT at 6 inches or greater, measured with a Cornet EMF meter and independently verified by 2 labs.
If you are pregnant, have a medical condition or take medication, talk with your healthcare provider before use.
Why Buy the RLT Home Total Spectrum ELITE From Luxury Wellness Store
We are an authorized RLT Home reseller. That means a genuine product, the manufacturer warranty, and a team here before and after your purchase.
We are a specialty wellness retailer, not a general marketplace. When you contact us, you reach people who know this product and can help you decide if it fits your space before you buy.
We offer a Price Match Guarantee on this product. Full terms are on our Price Match Guarantee page.
We ship free to the continental United States on every order.
Questions before you buy? Reach our team Monday through Friday, 9am to 5pm EST, at +1 (860) 590-3541 or support@luxurywellnessstore.com.
Specifications
- Model: Total Spectrum ELITE
- Number of LEDs: 864
- LED Type: 3535 LED, 5W
- Wavelengths: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, 1064nm
- Irradiance: 179 mW/cm² at 8 inches (solar power meter), 121.62 mW/cm² at 6 inches (spectrometer)
- Beam Angle: 30 degrees
- EMF: about 0.0 μT at 6 inches or greater
- Flicker: None
- Pulsing: 0 to 5,000 Hz
- Modes: 9 preset modes plus custom mode
- Controls: Touch panel and remote
- Power Consumption: 1540W
- Voltage: AC 100 to 240V
- LED Lifespan: 100,000 hours

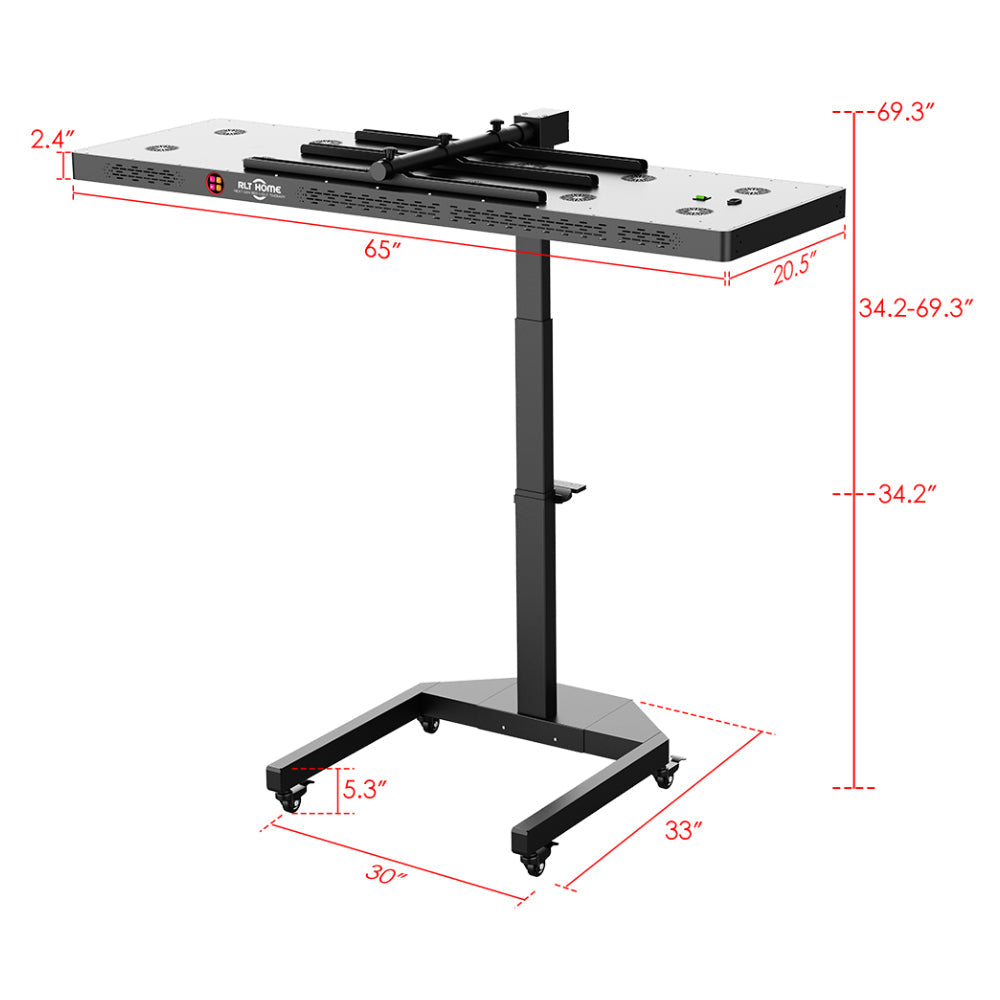

- Device Size: 1650 x 520 x 60 mm (65 x 20.5 x 2.4 in)
- Device Weight: 39 kg (86 lb)
- Device Box Size: 1730 x 620 x 190 mm (68 x 24 x 7 in)
- Device Shipping Weight: 42 kg (92.6 lb)
- Stand Size: 838 x 711 x 127 mm (33 x 28 x 5 in)
- Stand Weight: 24 kg (53 lb)
- Stand Box Size: 840 x 740 x 150 mm (33 x 29 x 6 in)
- Stand Shipping Weight: 27 kg (59.5 lb)
- Installed Stand Footprint: about 3 ft x 3 ft
- Stand Height: 29 in lowest to 64 in maximum from the ground
- Clearance Under Bed or Massage Table: 5.5 in with wheels, 3 in without
- Material / Housing: Iron
- Treatment Area: Full body
- Certifications: FDA Registered Class II, CE, RoHS
- Warranty: Manufacturer Warranty

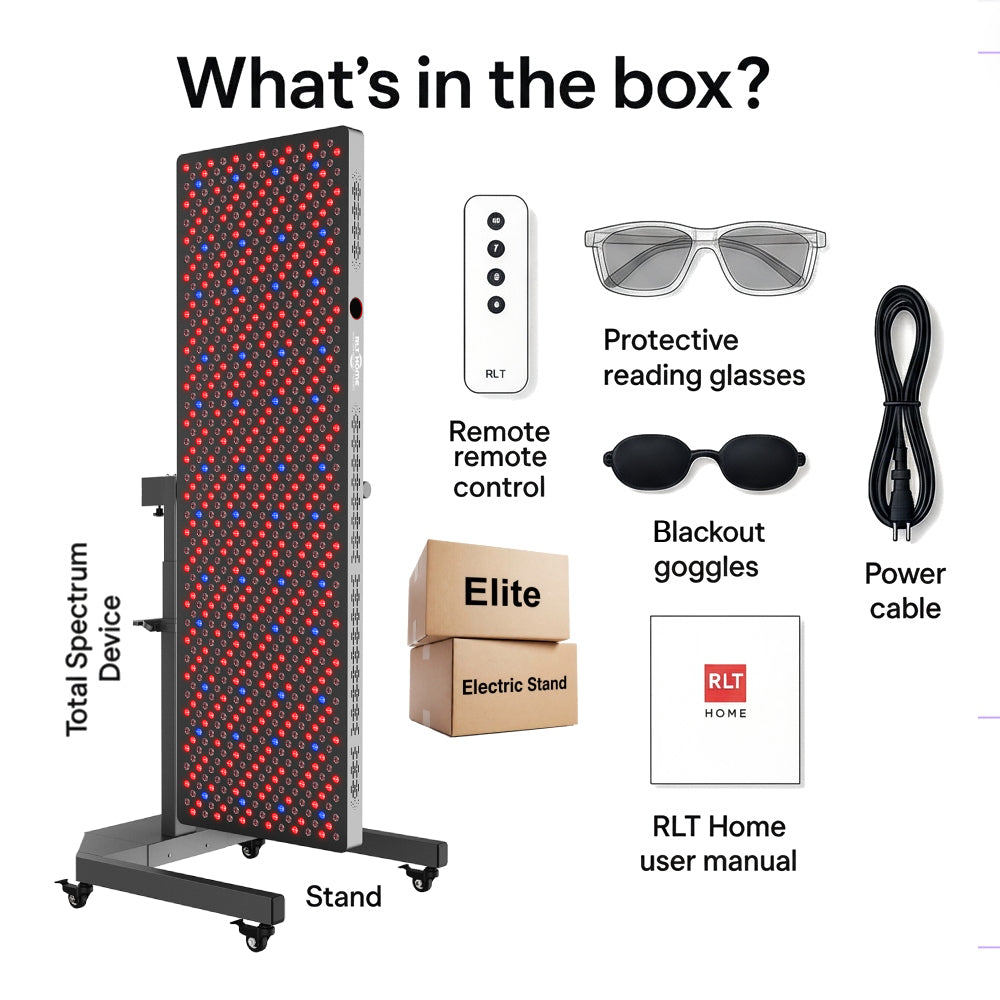

What's Included
- Total Spectrum ELITE device
- Adjustable electric stand
- Remote control
- Protective reading glasses
- Blackout goggles
- RLT Home user manual
- Power cable
FAQ
What is the difference between the RLT Home Total Spectrum ELITE and the RLT Home Total Spectrum ULTRA?
Both are full body panels with the same 7 wavelengths, 9 preset modes and electric stand. The RLT Home Total Spectrum ELITE has 864 LEDs in a 2 ft wide panel with 30 degree lenses and touch and remote controls. The RLT Home Total Spectrum ULTRA has 480 LEDs in a 1 ft wide panel with mixed 15, 30 and 60 degree lenses and touch and voice controls.
What is the difference between the RLT Home Total Spectrum ELITE and the RLT Home Total Spectrum MAX?
The RLT Home Total Spectrum MAX has 360 LEDs, is about 4 ft tall for large areas like the torso, thighs or abdomen, and comes with a vertical stand. The RLT Home Total Spectrum ELITE has 864 LEDs, is about 5 ft 5 in tall and 2 ft wide for the full body, and comes with an electric stand for standing or lying down.
Can I lie down for a session?

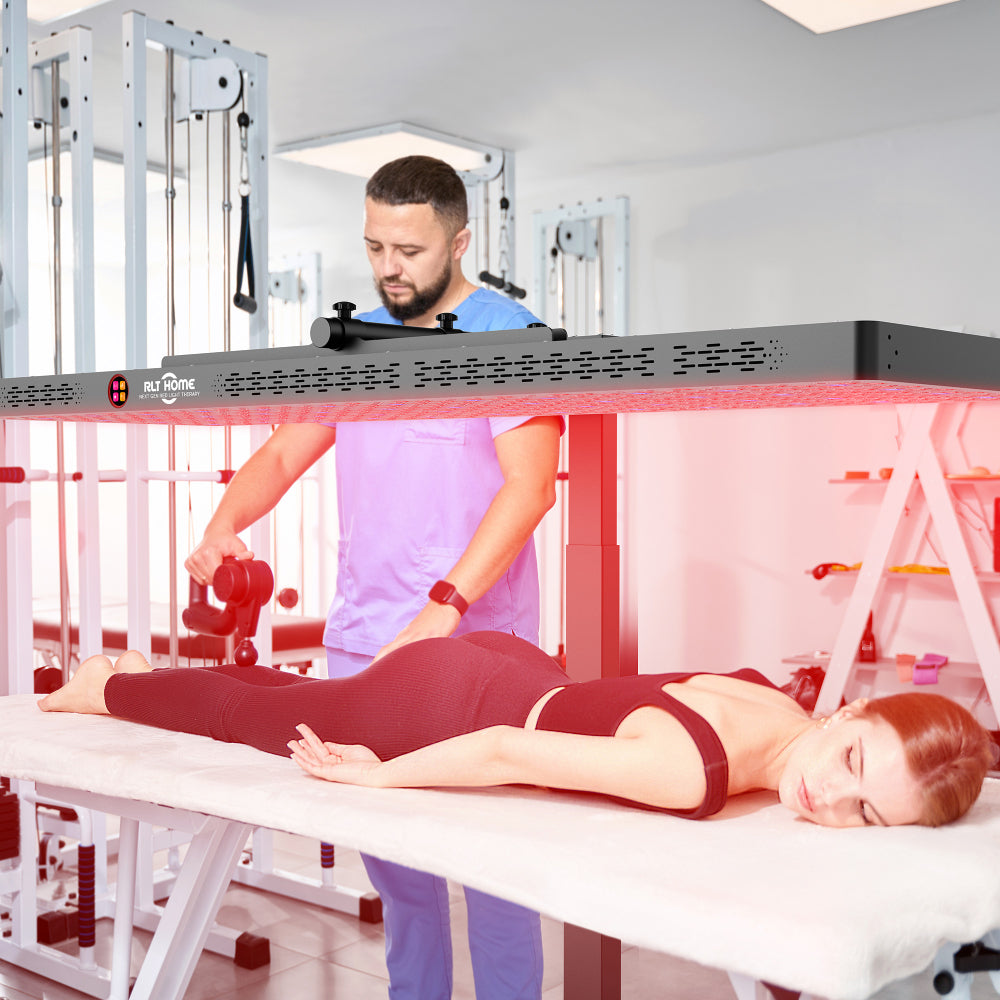

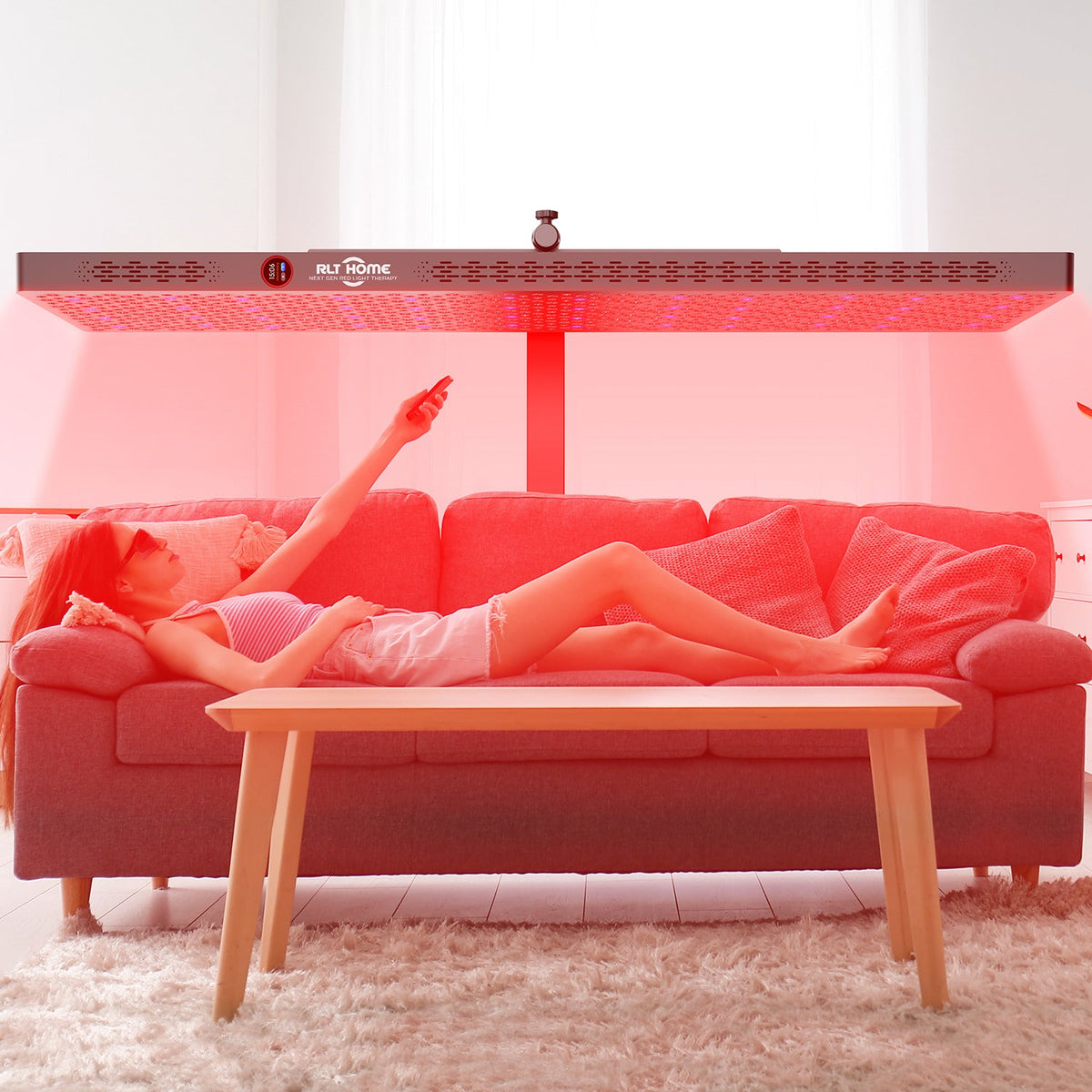

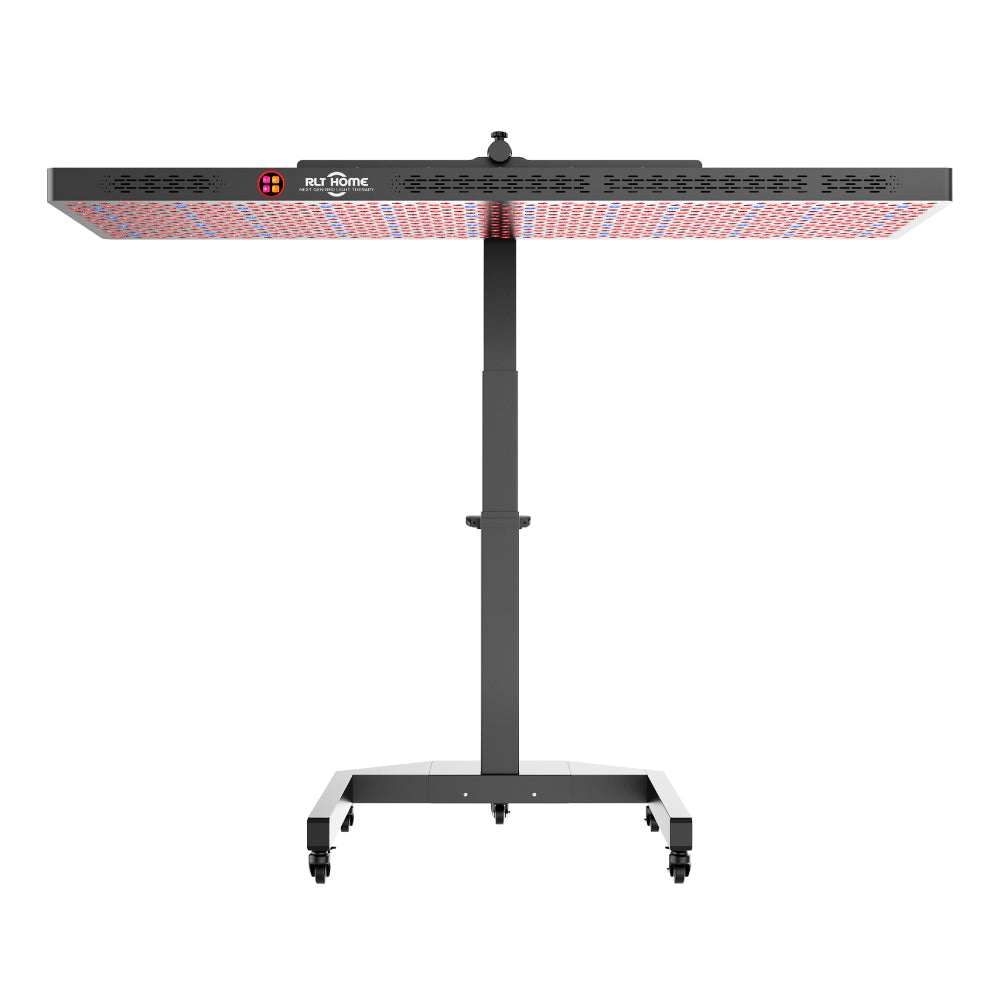

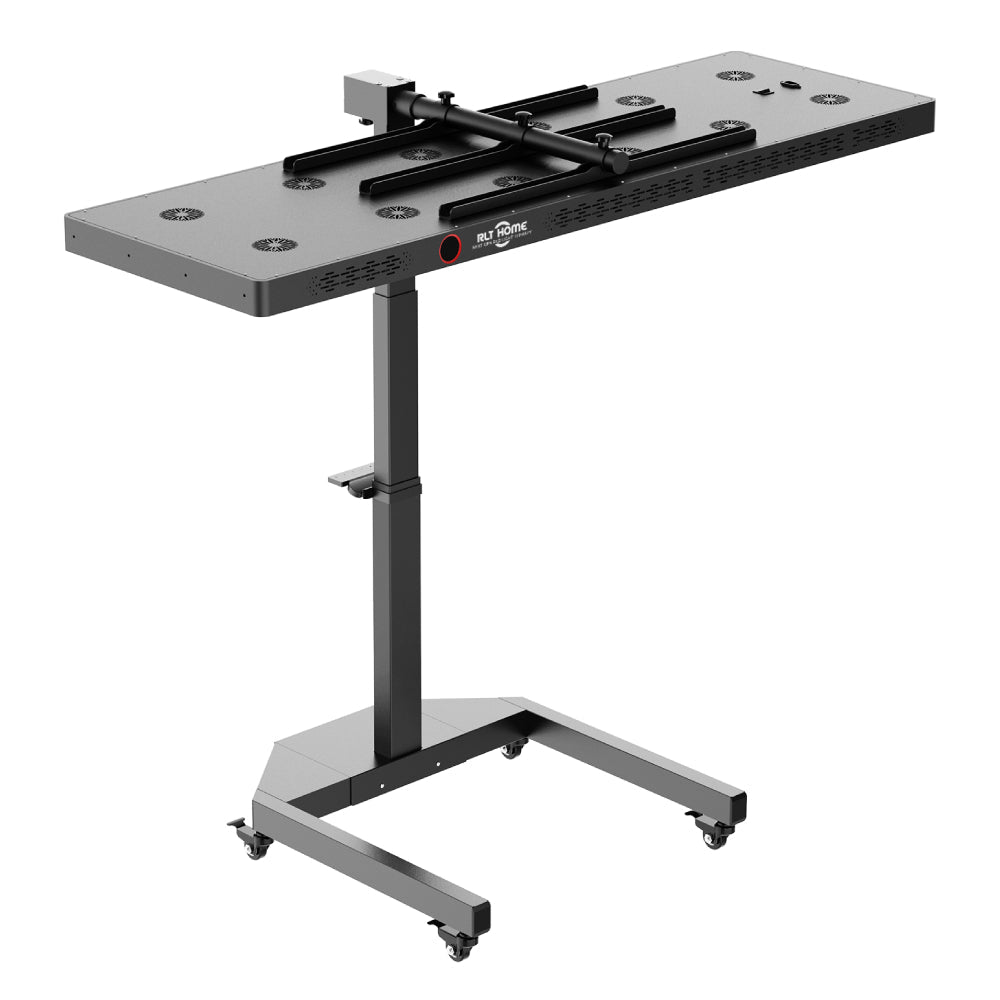

Yes. The included electric stand holds the panel horizontal so you can lie under it.
Will the stand fit over my bed or massage table?
RLT Home lists the installed stand's clearance under a bed or massage table as 5.5 in with wheels and 3 in without, and the stand adjusts up to 64 in from the ground.
How much floor space does it need?
The installed stand takes up about 3 ft by 3 ft.
How tall does the stand go?
It adjusts from 29 in at its lowest to 64 in at its highest, measured from the ground.
Can I use it in a commercial setting?
Yes. RLT Home describes it as a premium device for full body home or commercial use.
Does it come with a remote?
Yes. A remote is included, and you can also use the touch panel.
Why does it come with two kinds of eye protection?
You get reading friendly protective glasses and blackout goggles, so you can choose what suits each session.
Does it share my data?
No. RLT Home lists the RLT Home Total Spectrum ELITE as privacy first with no data sharing. You control it with the touch panel or the included remote.
Can I turn off the pulsing?
Yes. Pulsing runs from 0 to 5,000 Hz and can be set per channel in custom mode. Set it to 0 for steady light.
What are the preset modes for?
The 9 preset modes are built for goals like skin, sleep, hair and recovery. Custom mode lets you set your own intensity and pulsing.
Does the light flicker?
No. It is flicker free.
How much EMF does it give off?
About 0.0 μT at 6 inches or greater, measured with a Cornet EMF meter and verified by 2 independent labs.
How strong is the light output?
RLT Home measured 179 mW/cm² at 8 inches with a solar power meter and 121.62 mW/cm² at 6 inches with a spectrometer.
What power does it need?
It runs on AC 100 to 240V and draws 1540W. RLT Home lists it as compatible with standard outlets.
How long do the LEDs last?
The LEDs are rated for 100,000 hours, over 11 years of continuous use.
Is the RLT Home Total Spectrum ELITE FDA registered?
Yes. It is listed with the FDA as a Class II medical device and is CE and RoHS certified.
Can I use my HSA or FSA card for this purchase?
Many HSA and FSA plans cover this type of device, but eligibility varies by provider. Please verify with your plan administrator before ordering.
What payment options are available?
We offer several payment methods, including PayPal and Shop Pay. Both PayPal and Shop Pay offer pay-over-time options, availability and terms depend on the customer's account and eligibility.
How long does shipping take?
In-stock orders are typically delivered within 8 business days. The panel and the electric stand ship separately in 2 boxes. You'll get a shipping confirmation email with tracking once it ships. Full details on our Shipping Policy.
Luxury Wellness Store is an authorized reseller of RLT Home products. This device is not intended to diagnose, treat, cure, or prevent any medical condition. Individual results may vary. Consult a healthcare provider before use if you are pregnant, have a medical condition, or are taking medication.
