Full Body Red Light Therapy at Home, Standing or Lying Down

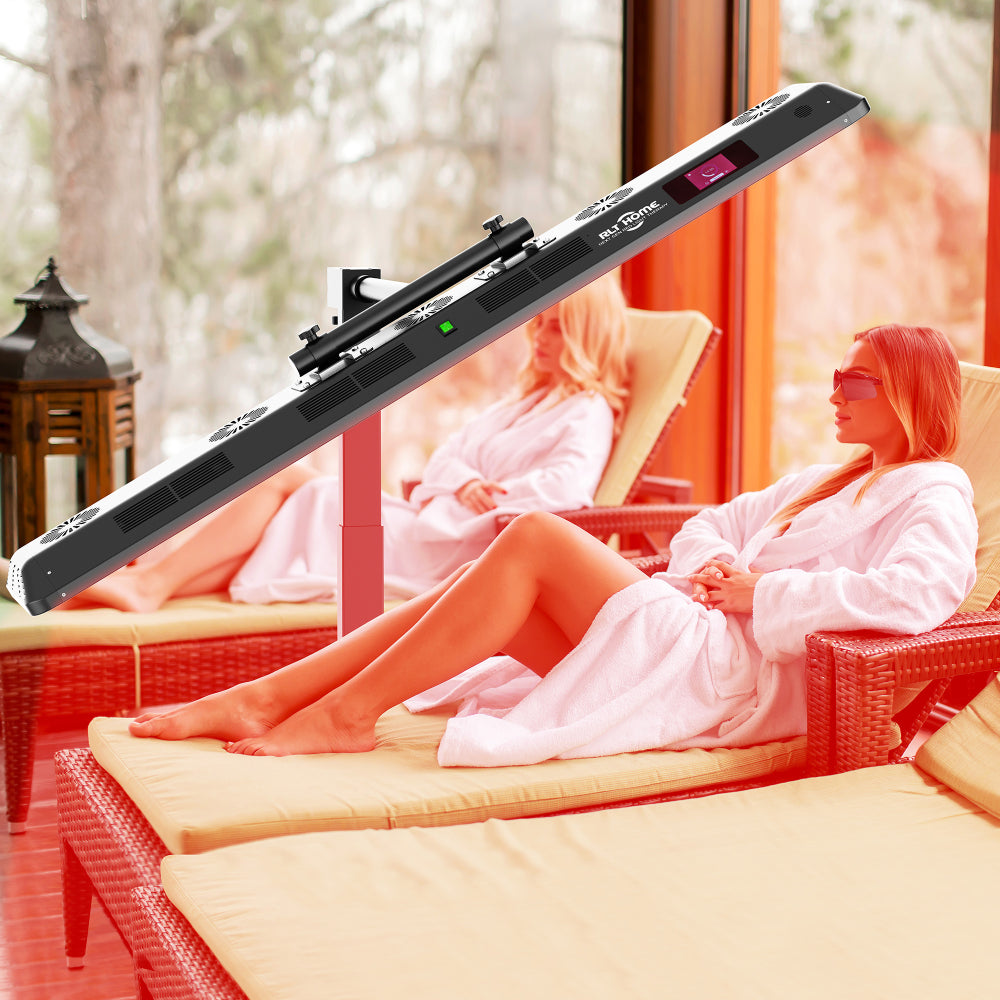

Want full body sessions lying down, not just standing? The RLT Home Total Spectrum ULTRA is a full body red light therapy panel that comes with a heavy duty electric stand for horizontal and vertical use. Stand in front of it, or lie on a bed or massage table underneath it. The panel is about 5 ft 4 in tall and 1 ft wide, with 480 LEDs across 7 wavelengths.
Electric stand included. It adjusts from 29 in to 64 in off the ground and takes up about 3 ft by 3 ft. RLT Home lists its clearance under a bed or massage table as 5.5 in with wheels and 3 in without.
HSA/FSA eligible. Many HSA and FSA plans cover this type of device, though eligibility varies by provider. Check with your plan administrator before ordering.
How Does the RLT Home Total Spectrum ULTRA Actually Work
Red light therapy shines specific wavelengths of light onto the skin. Red light works near the surface, while near infrared and infrared light reach deeper tissue.
The RLT Home Total Spectrum ULTRA uses 480 LEDs at 5W each across 7 wavelengths. RLT Home measured 174 mW/cm² at 8 inches with a solar power meter and 119.28 mW/cm² at 6 inches with a spectrometer, and posts the third party test images on their site. You control it by touch or voice, with no remote needed.
RLT Home Total Spectrum ULTRA vs ELITE vs MAX, What's Actually Different
All three use the same 7 wavelengths and 9 preset modes. They differ in size, lenses, controls and stand.
- The RLT Home Total Spectrum MAX has 360 LEDs, is about 4 ft tall and covers large areas like the torso, thighs or abdomen. It comes with a vertical stand.
- The RLT Home Total Spectrum ULTRA has 480 LEDs, is about 5 ft 4 in tall and 1 ft wide, and covers the full body. It uses mixed 15, 30 and 60 degree lenses, touch and voice controls, and an electric stand for standing or lying down.
- The RLT Home Total Spectrum ELITE has 864 LEDs, is about 5 ft 5 in tall and 2 ft wide, and covers the full body. It uses 30 degree lenses, touch and remote controls, and an electric stand for horizontal and vertical use.
If you want full body coverage in a slimmer 1 ft wide panel with voice control, the RLT Home Total Spectrum ULTRA is the fit.
What Does a Mixed Beam Angle Mean

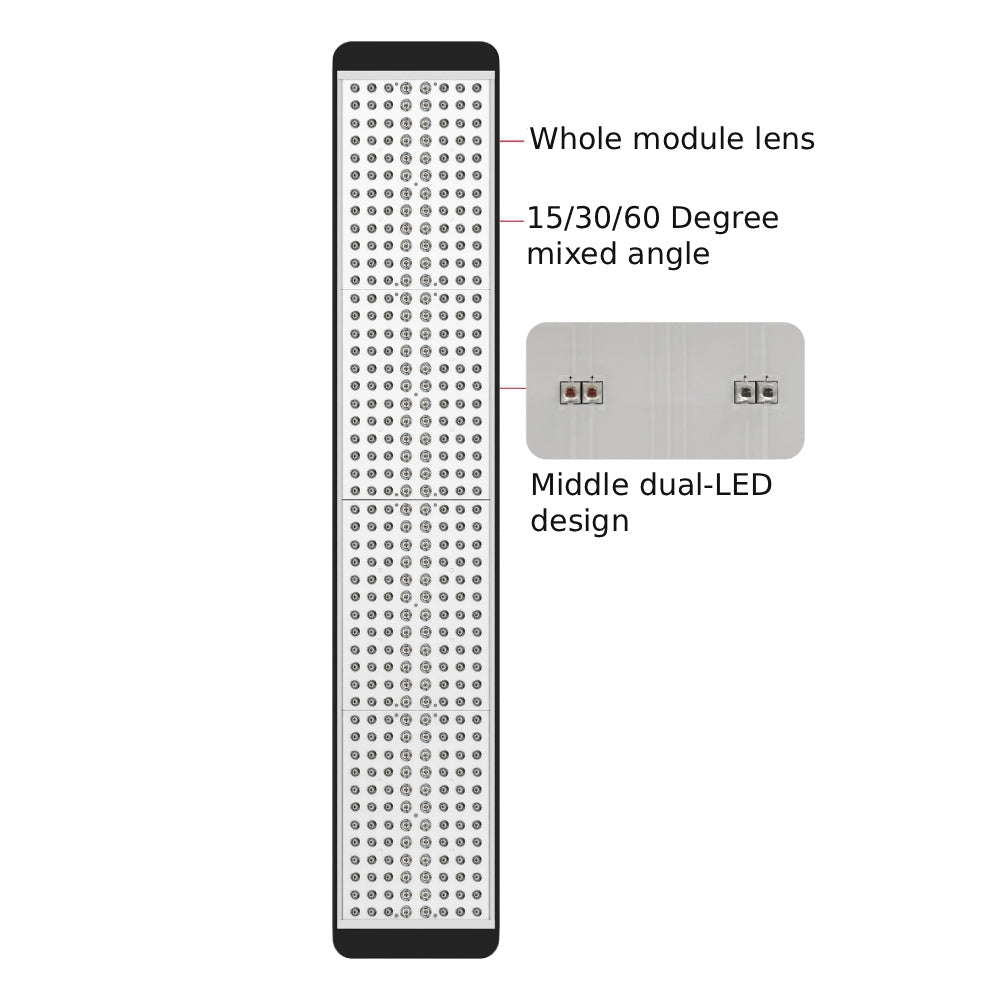

A beam angle is how wide each LED spreads its light. The other Total Spectrum models use a single 30 degree angle, while the RLT Home Total Spectrum ULTRA combines three. 30 degree lenses in the core send concentrated light to the middle of the body. Wider 60 degree inner lenses spread light edge to edge. Narrow 15 degree outer lenses keep light from spilling past the body.
What Do 7 Wavelengths Actually Mean

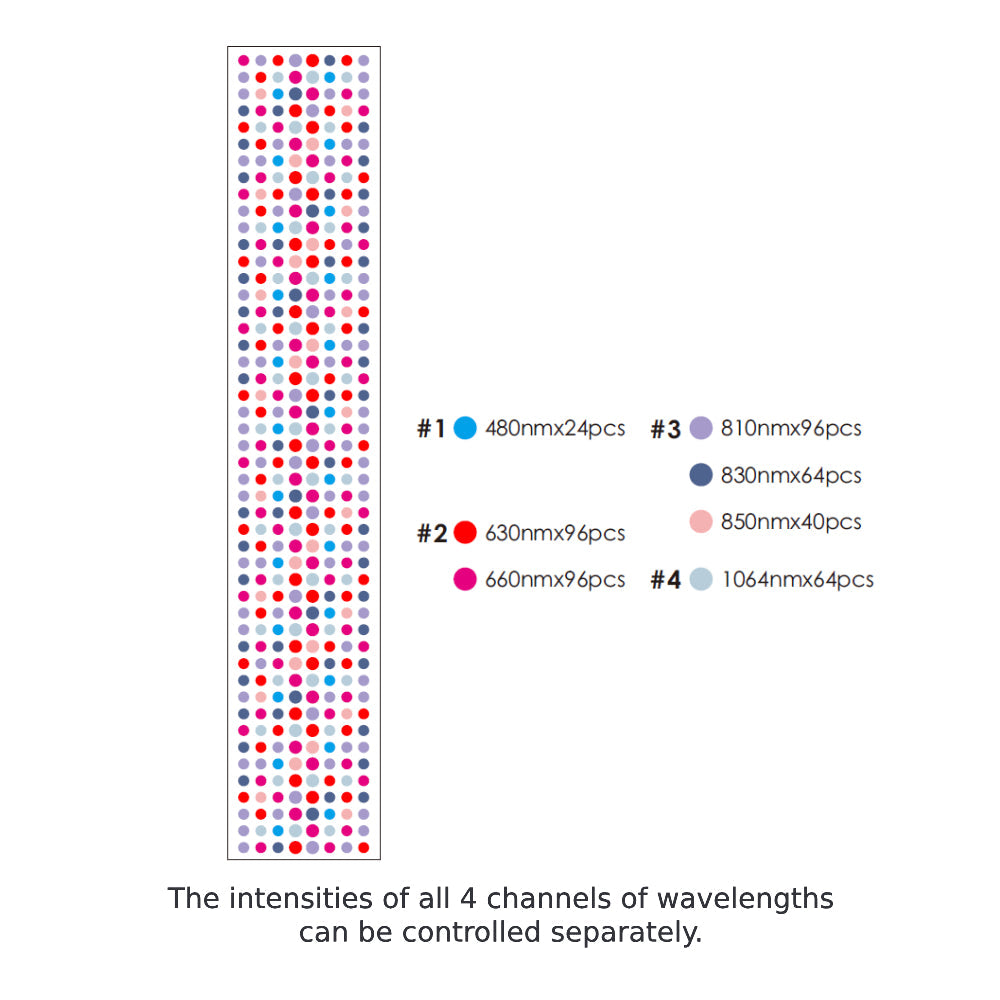

The RLT Home Total Spectrum ULTRA splits its LEDs across 7 wavelengths, a mix RLT Home built from thousands of published human studies. According to RLT Home, each reaches a different depth.
- 480nm blue light, 5% of LEDs, under 0.5 mm (0.02 in)
- 630nm red light, 20%, 1 to 2 mm (0.04 to 0.08 in)
- 660nm red light, 20%, 2 to 5 mm (0.08 to 0.2 in)
- 810nm near infrared, 20%, 20 to 30 mm (0.8 to 1.2 in)
- 830nm near infrared, 13%, 30 to 40 mm (1.2 to 1.6 in)
- 850nm near infrared, 8%, 30 to 50 mm (1.2 to 2 in)
- 1064nm infrared, 14%, 50 to 70 mm (2 to 2.8 in)
What Results Can You Actually Expect
Red and near infrared light are widely studied for skin, muscle recovery, circulation and sleep. Results vary from person to person. This device is not meant to diagnose, treat, cure, or prevent any medical condition.
Product Features
480 LEDs Across 7 Wavelengths
Blue, red, near infrared and infrared from 480nm to 1064nm.

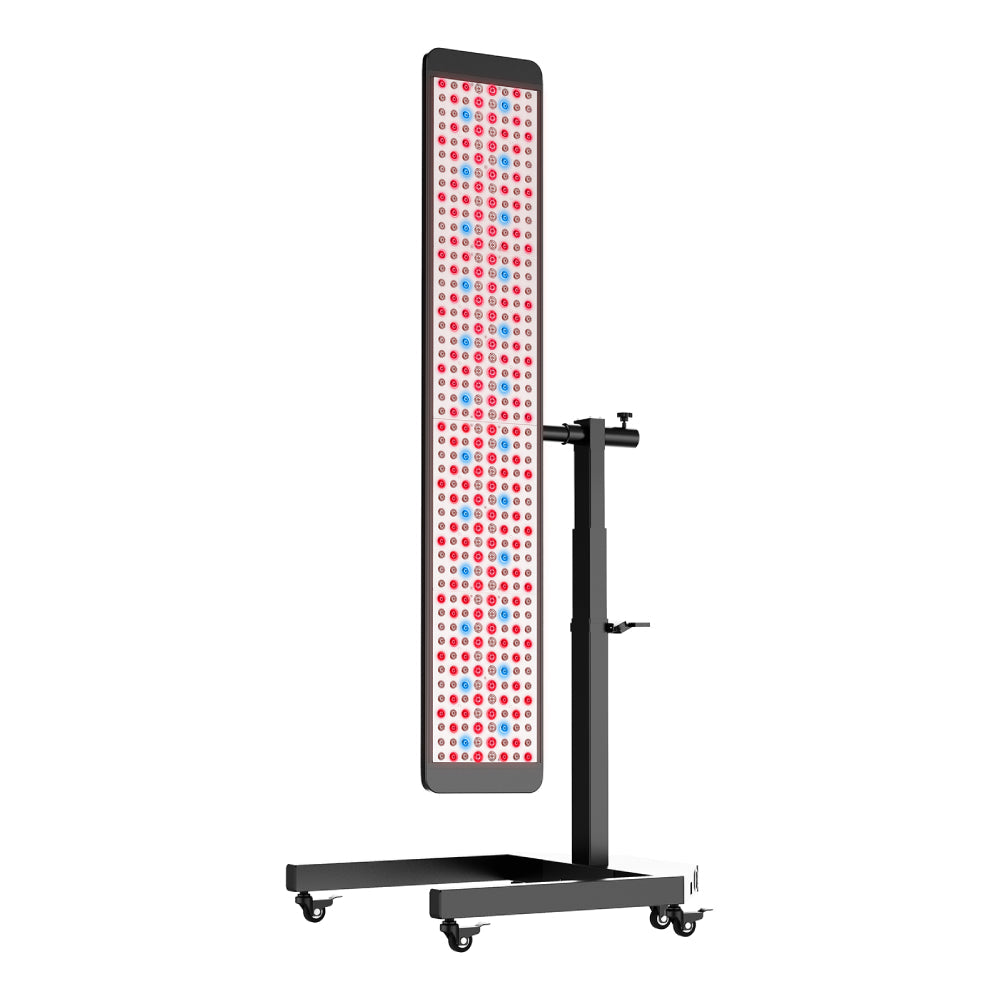

Full Body Coverage
About 5 ft 4 in tall and 1 ft wide.

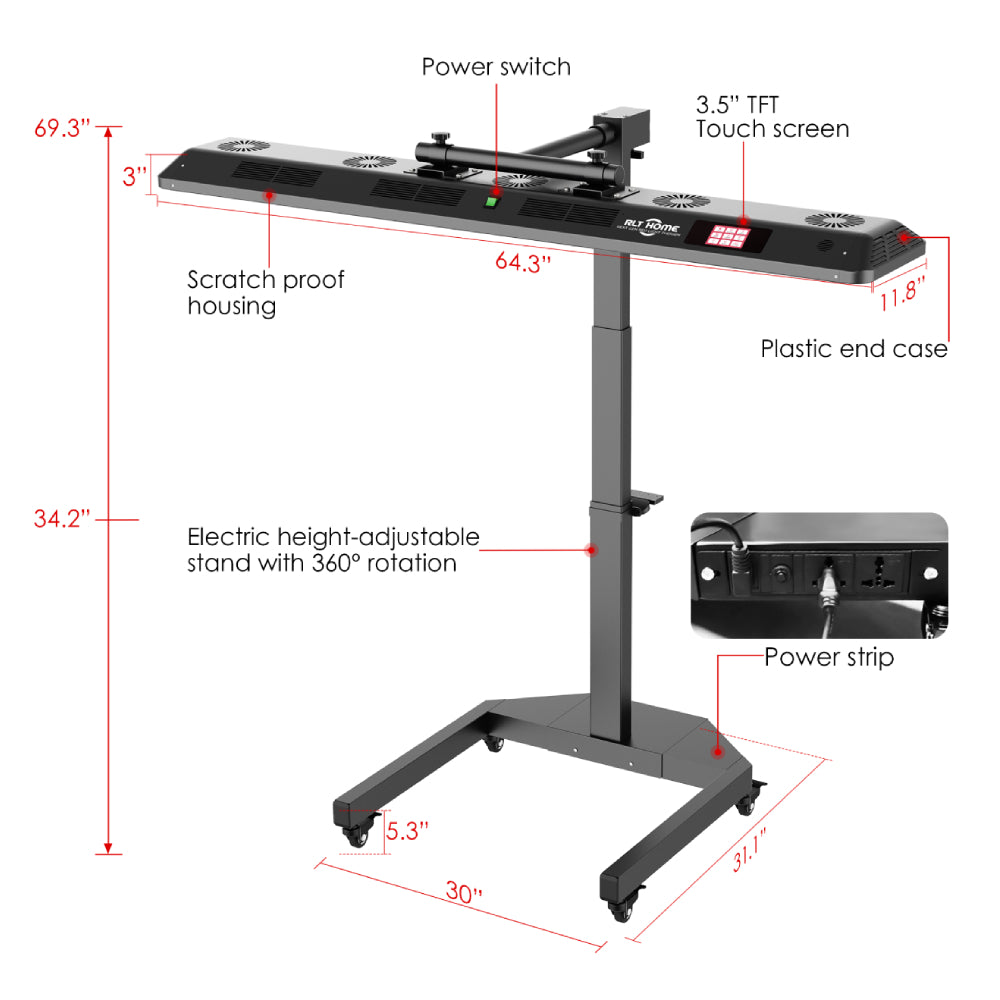

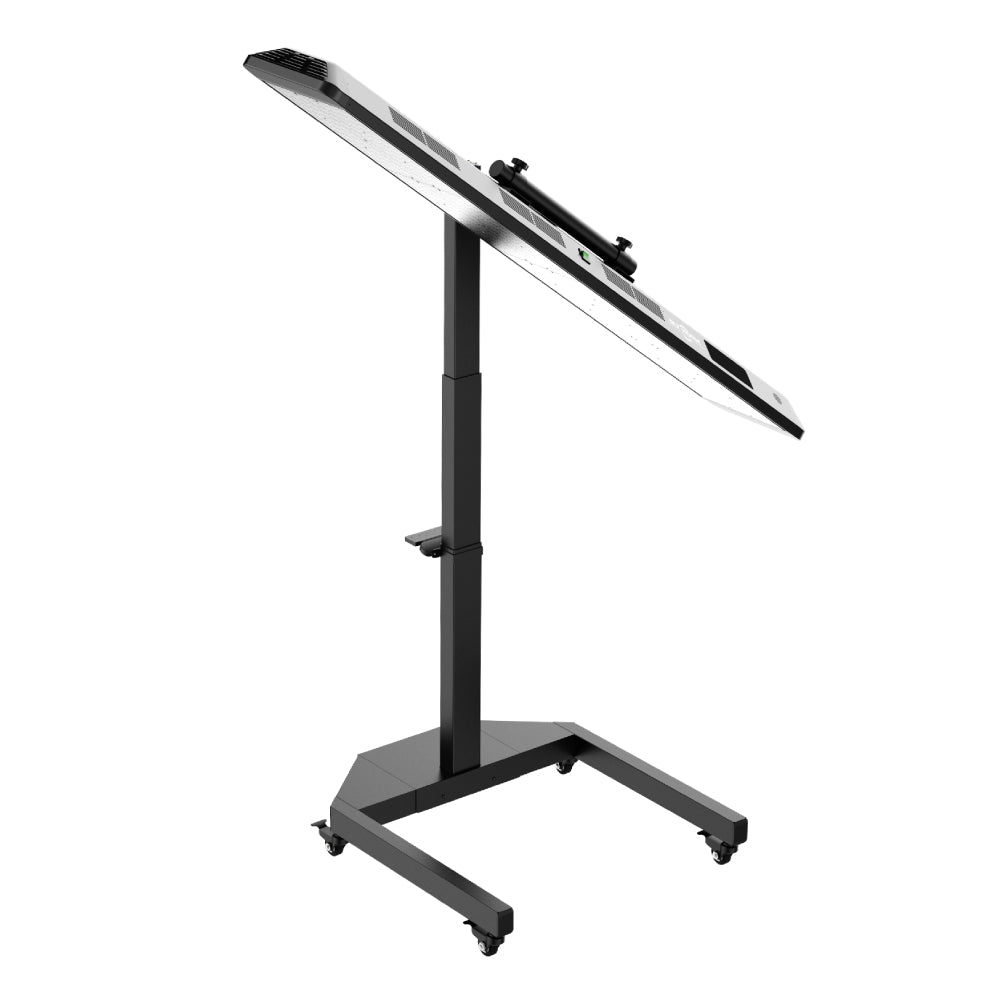

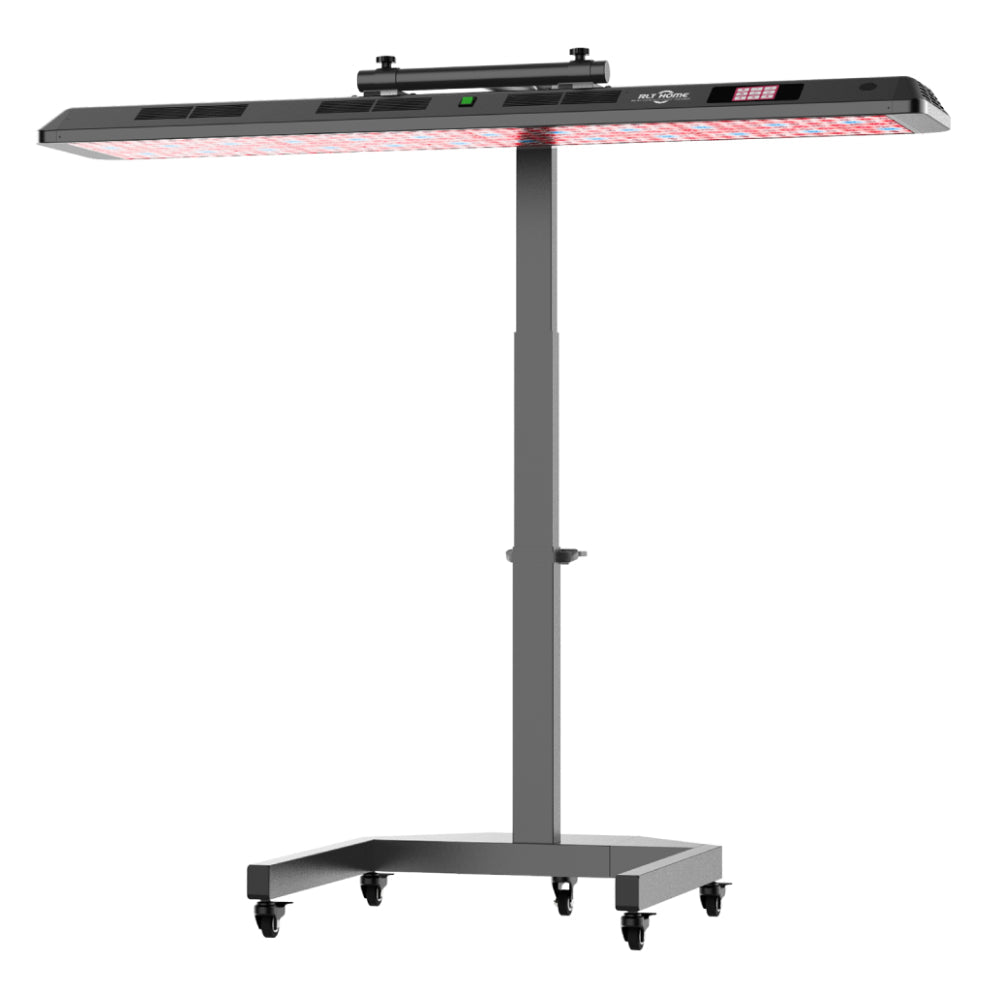

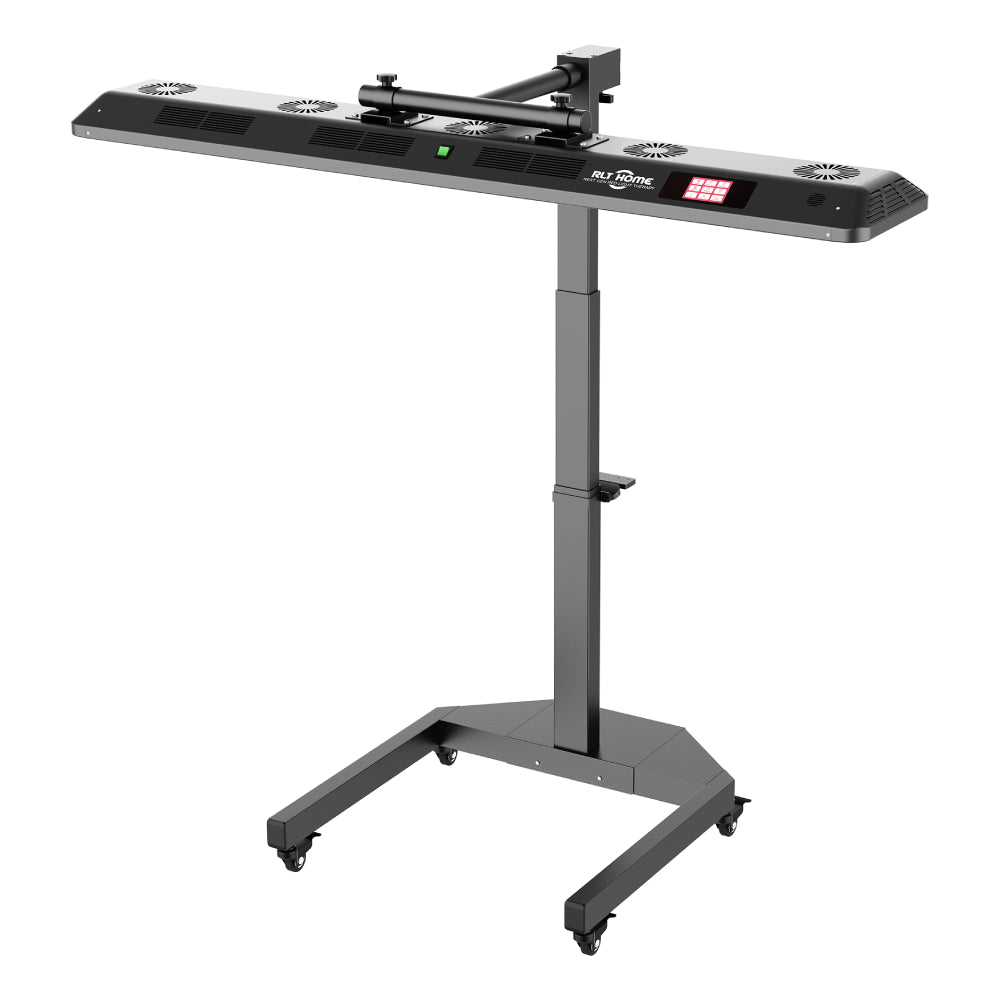

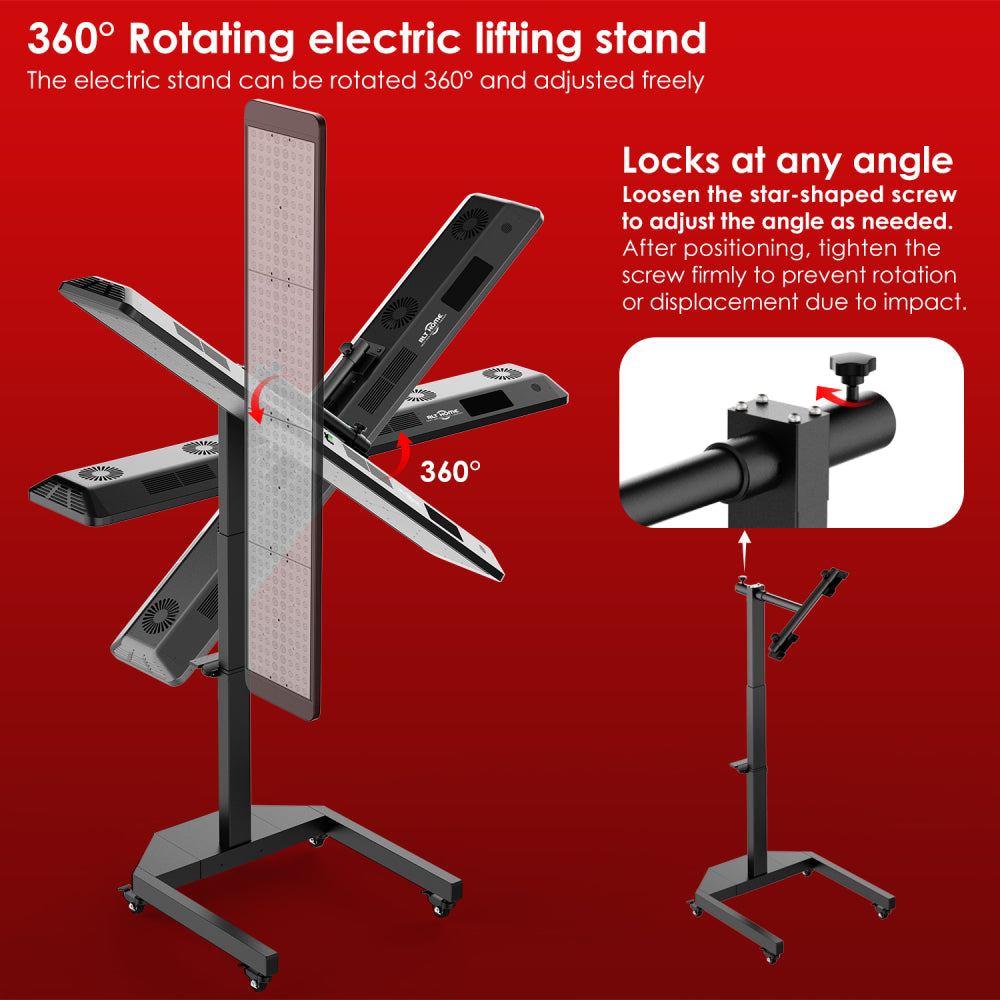

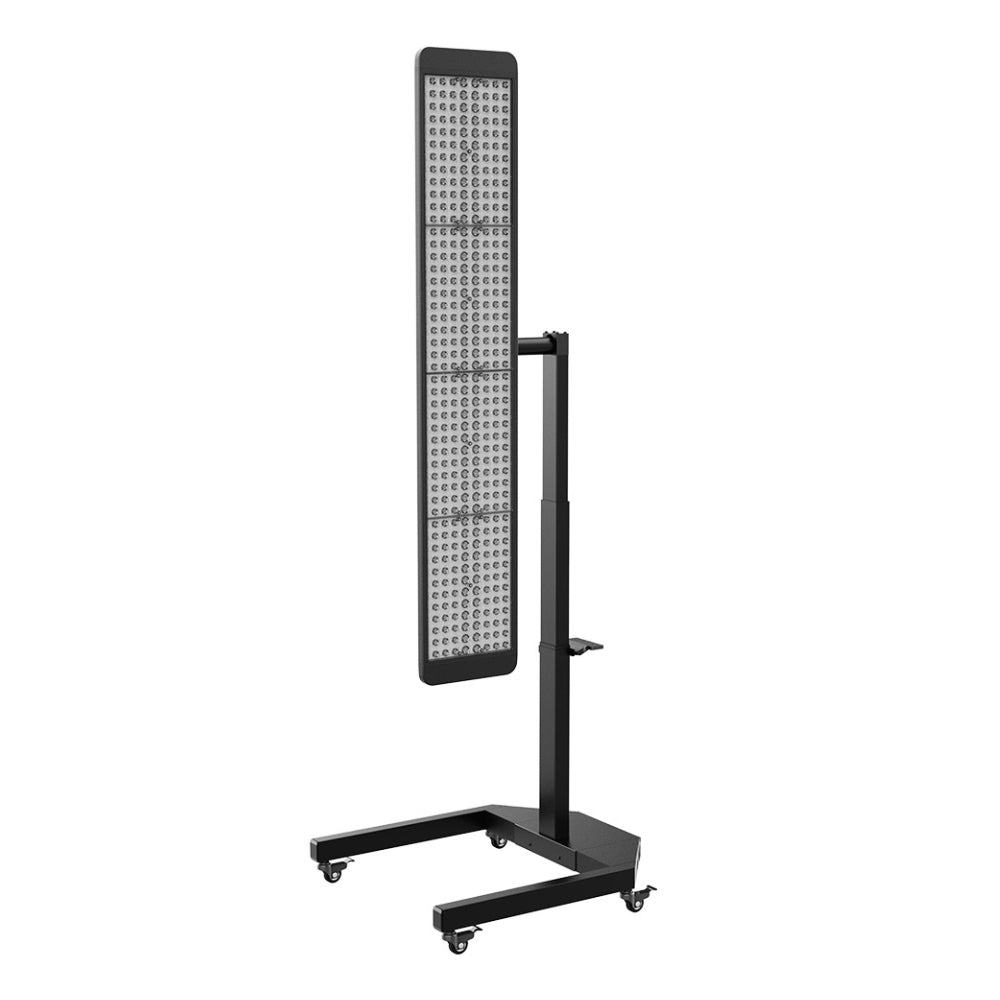

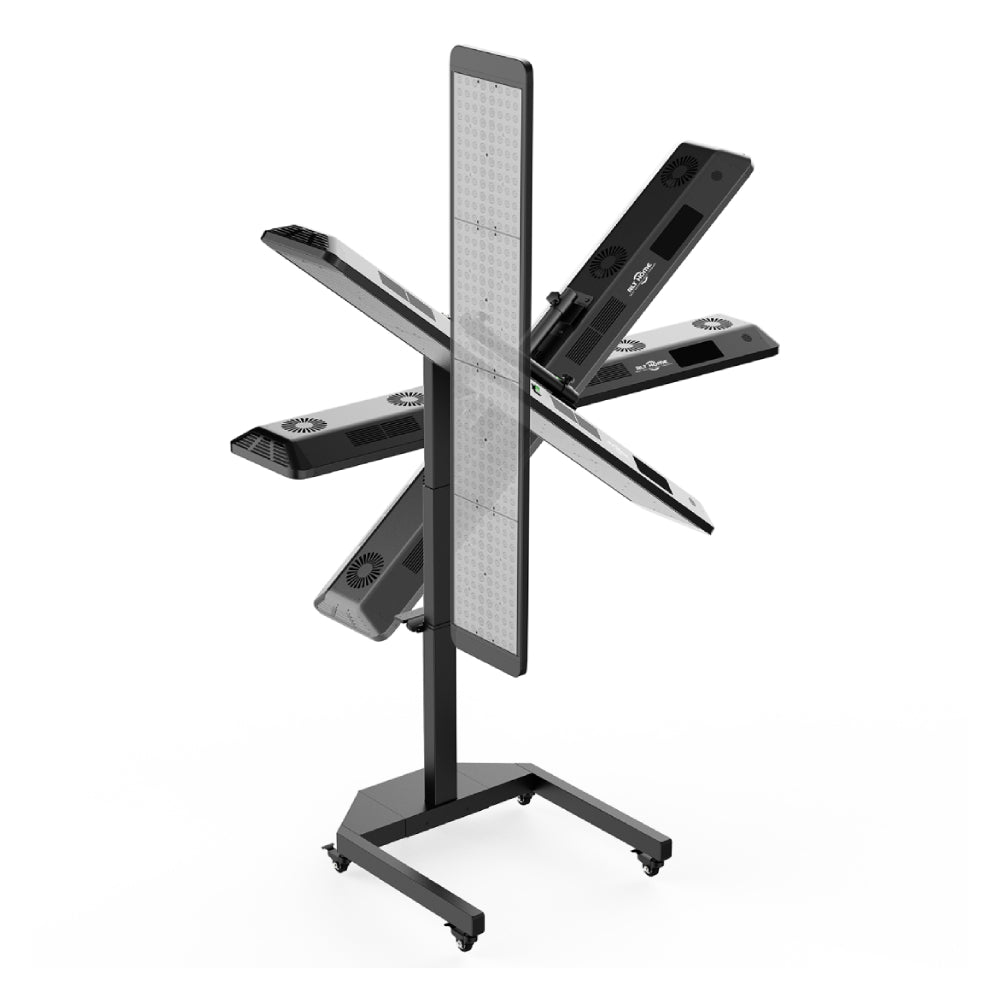

Electric Stand for Standing or Lying Down

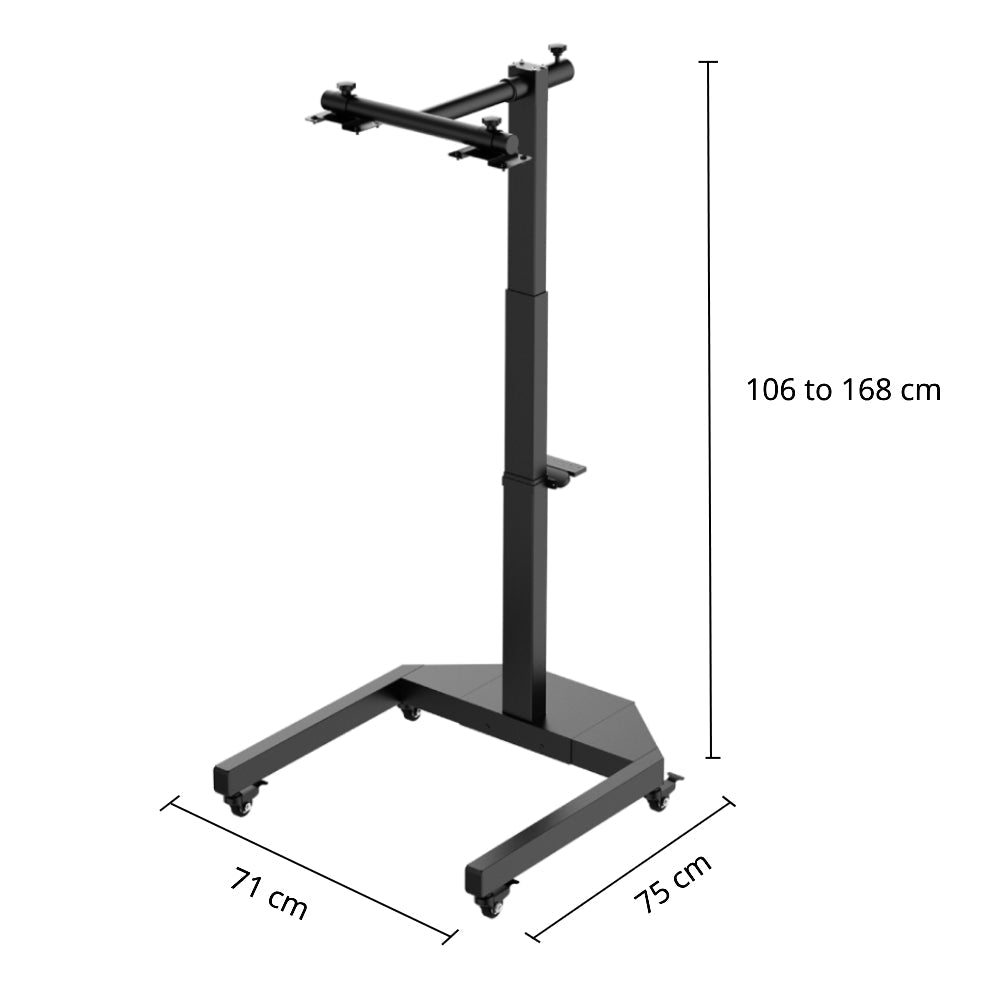

Holds the panel vertical or horizontal and adjusts from 29 in to 64 in off the ground.

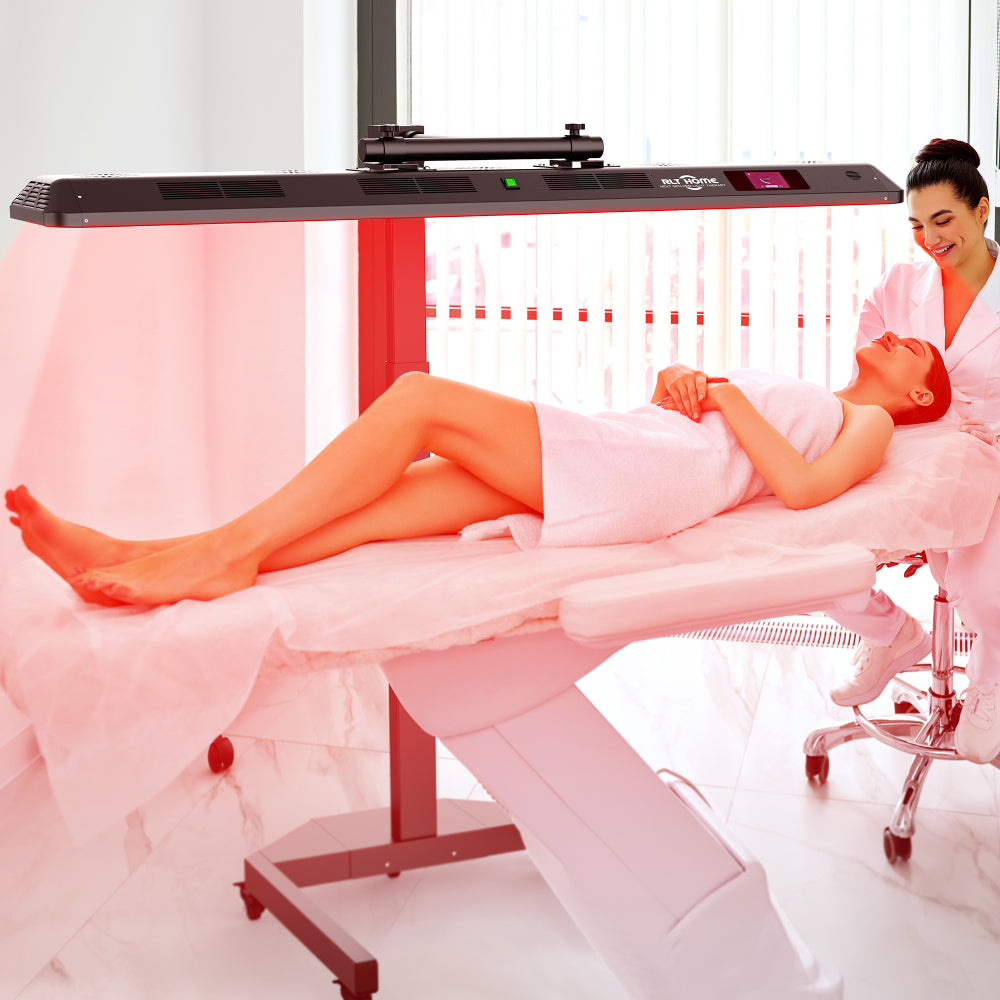

Fits Over a Bed or Massage Table
RLT Home lists the installed stand's clearance under a bed or massage table as 5.5 in with wheels and 3 in without, and the stand adjusts up to 64 in from the ground.
Mixed 15, 30 and 60 Degree Lenses
Concentrated light at the core, wide coverage across the body and narrow edges to limit wasted light.

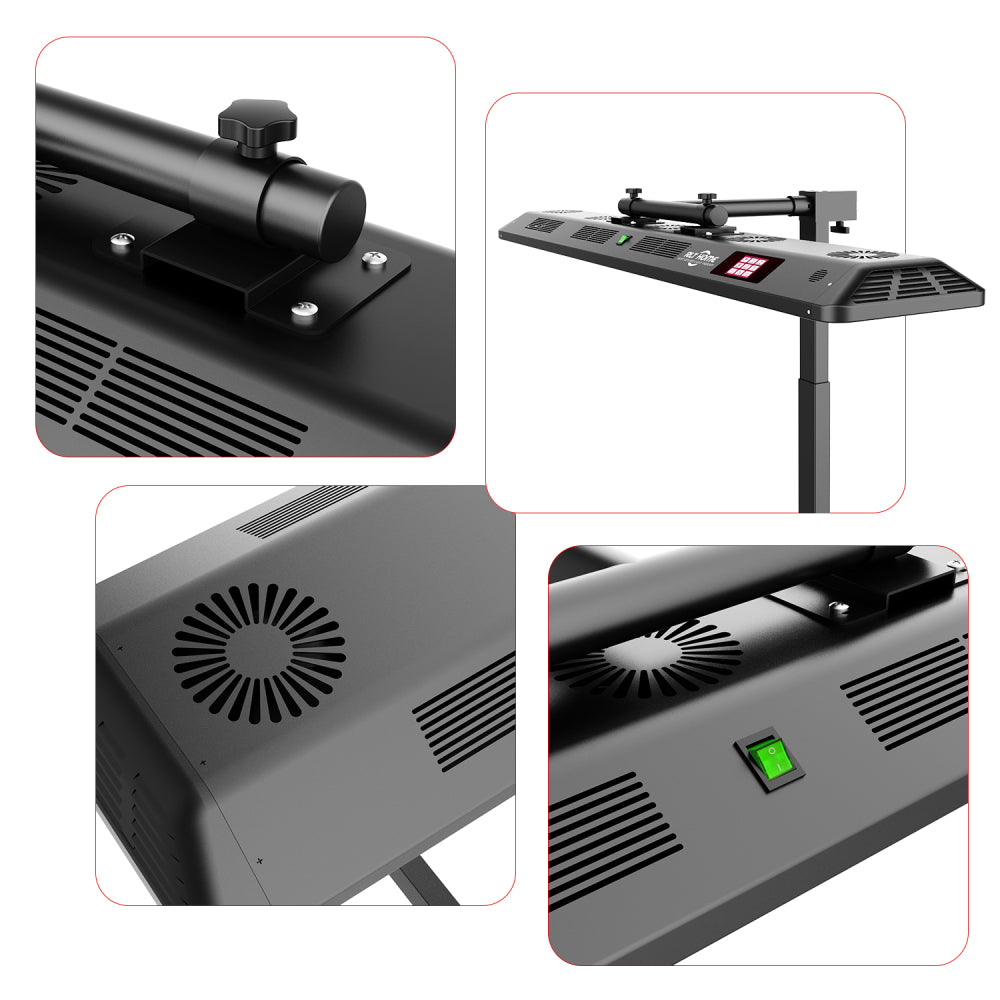

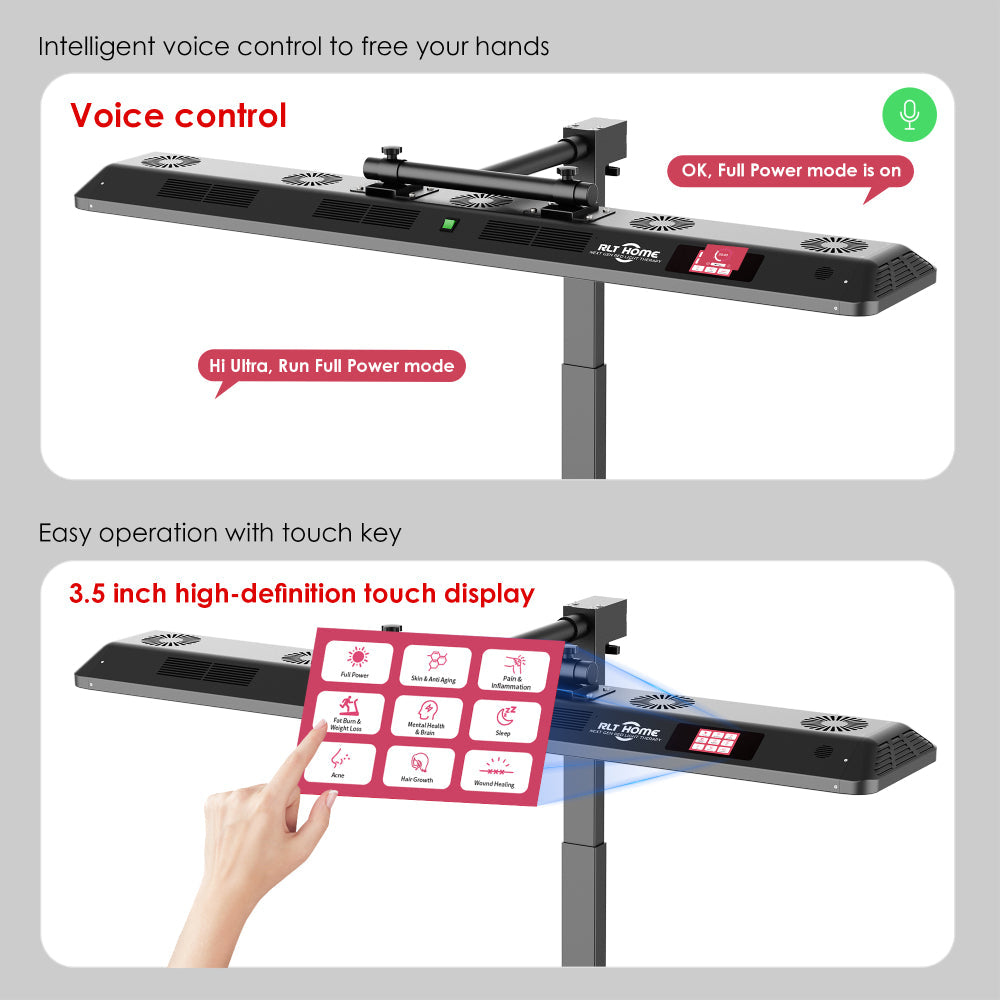

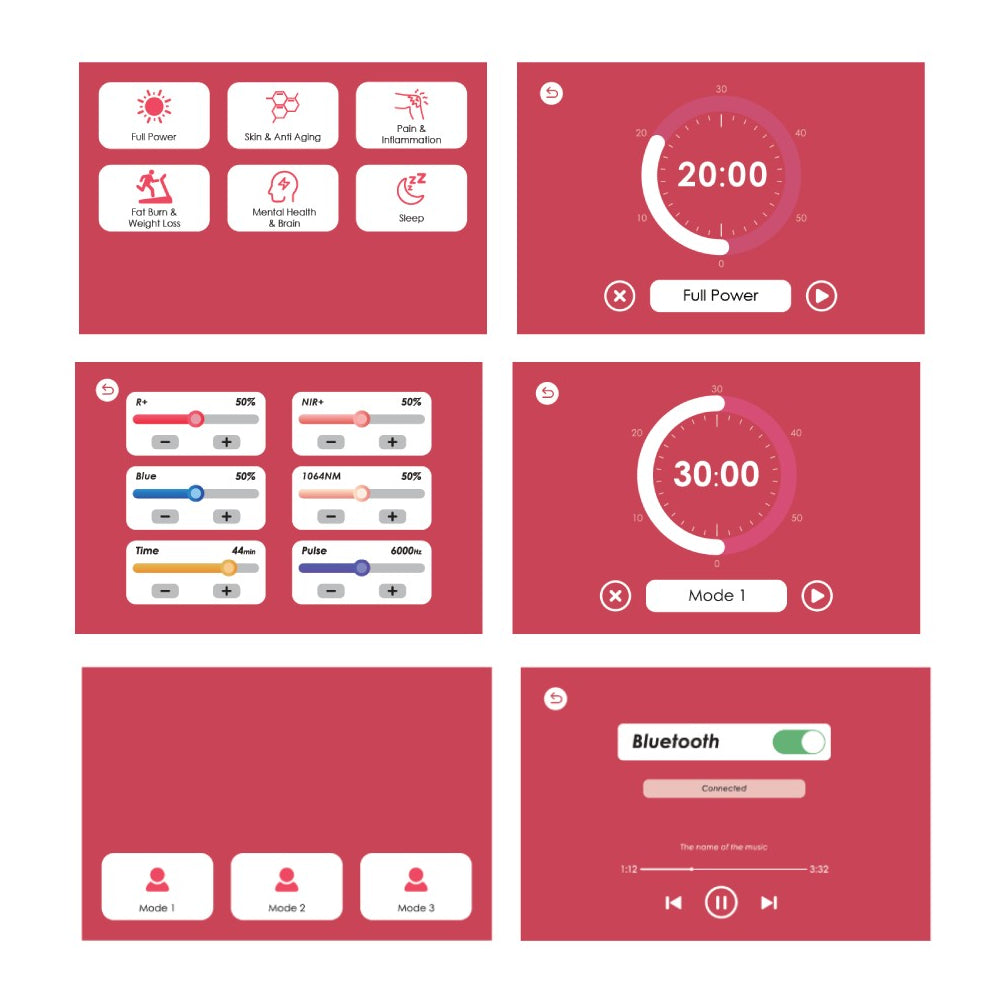

Touch and Voice Controls
Adjust settings by touch or voice from anywhere in the room, no remote needed.
Bluetooth Music Integration
Bluetooth music integration, as listed by RLT Home.
9 Preset Modes Plus Custom
Preset modes for skin, sleep, hair, recovery and more, plus a custom mode.
Individual Channel Control
In custom mode, set intensity and pulsing for red, blue, near infrared and 1064nm separately.
Adjustable Pulsing, 0 to 5,000 Hz
Set pulsing per channel, or set it to 0 for steady light.
No App, No Internet
It does not connect to apps or the internet, so it does not share your data.
100,000 Hour LED Life
Rated for over 11 years of continuous use.
Two Kinds of Eye Protection
Reading friendly protective glasses and blackout goggles are both included.
FDA Registered Class II Device
Listed with the FDA as a Class II medical device, plus CE and RoHS certified.
Safety Information
No flicker. The LEDs do not strobe.
Near zero EMF. About 0.0 μT at 6 inches or greater, measured with a Cornet EMF meter and independently verified by 2 labs.
If you are pregnant, have a medical condition or take medication, talk with your healthcare provider before use.
Why Buy the RLT Home Total Spectrum ULTRA From Luxury Wellness Store
We are an authorized RLT Home reseller. That means a genuine product, the manufacturer warranty, and a team here before and after your purchase.
We are a specialty wellness retailer, not a general marketplace. When you contact us, you reach people who know this product and can help you decide if it fits your space before you buy.
We offer a Price Match Guarantee on this product. Full terms are on our Price Match Guarantee page.
We ship free to the continental United States on every order.
Questions before you buy? Reach our team Monday through Friday, 9am to 5pm EST, at +1 (860) 590-3541 or support@luxurywellnessstore.com.
Specifications
- Model: Total Spectrum ULTRA
- Number of LEDs: 480
- LED Type: 3535 Dual LED, 5W
- Wavelengths: 480nm, 630nm, 660nm, 810nm, 830nm, 850nm, 1064nm
- Irradiance: 174 mW/cm² at 8 inches (solar power meter), 119.28 mW/cm² at 6 inches (spectrometer)
- Beam Angle: Mixed 15, 30 and 60 degrees
- EMF: about 0.0 μT at 6 inches or greater
- Flicker: None
- Pulsing: 0 to 5,000 Hz
- Modes: 9 preset modes plus custom mode
- Controls: Touch and voice (no remote)
- Power Consumption: 850W
- Voltage: AC 100 to 240V
- LED Lifespan: 100,000 hours
- Device Size: 1635 x 300 x 75 mm (64.3 x 11.8 x 3 in)
- Device Weight: 18 kg (39.6 lb)
- Device Box Size: 1810 x 390 x 170 mm (71 x 15 x 6 in)
- Device Shipping Weight: 23.4 kg (51.5 lb)
- Stand Size: 838 x 711 x 127 mm (33 x 28 x 5 in)
- Stand Weight: 24 kg (53 lb)
- Stand Box Size: 840 x 740 x 150 mm (33 x 29 x 6 in)
- Stand Shipping Weight: 27.8 kg (61.3 lb)
- Installed Stand Footprint: about 3 ft x 3 ft
- Stand Height: 29 in lowest to 64 in maximum from the ground
- Clearance Under Bed or Massage Table: 5.5 in with wheels, 3 in without
- Material / Housing: Iron
- Treatment Area: Full body
- Certifications: FDA Registered Class II, CE, RoHS
- Warranty: Manufacturer Warranty

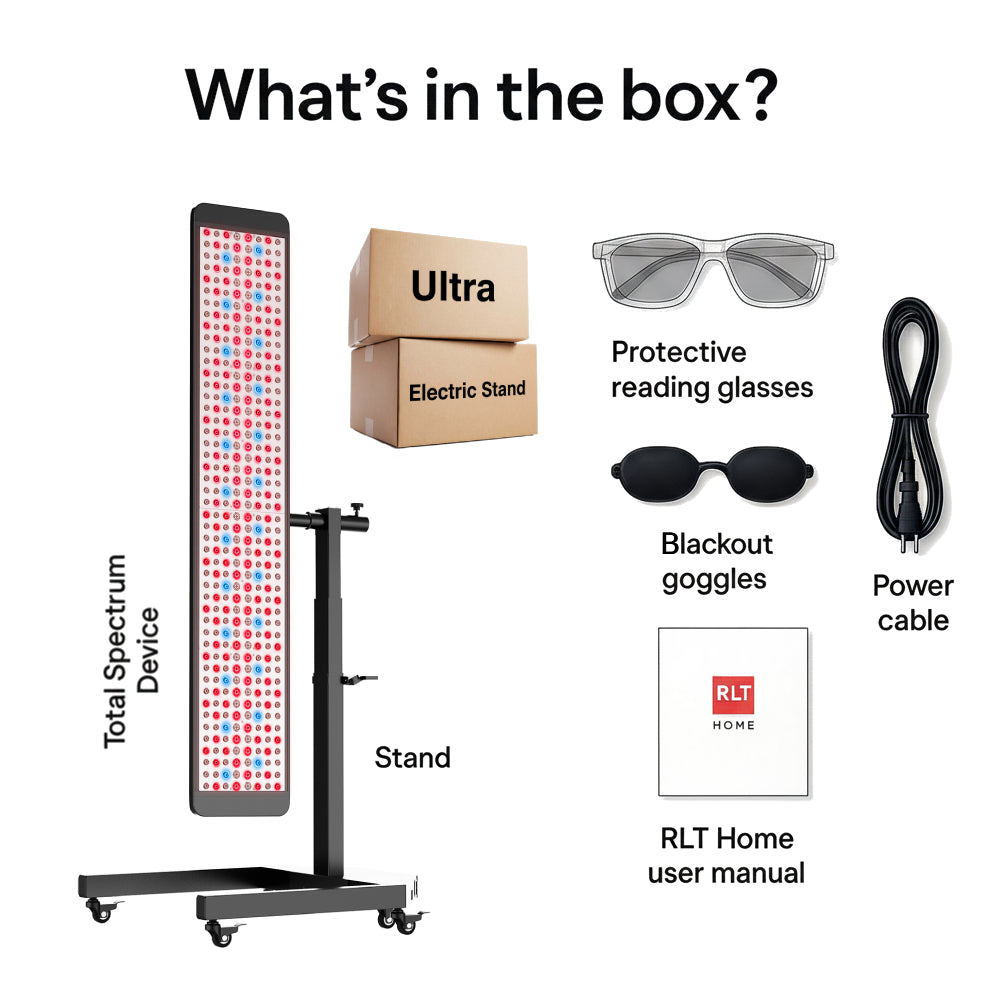

What's Included
- Total Spectrum ULTRA device
- Adjustable electric stand
- Protective reading glasses
- Blackout goggles
- RLT Home user manual
- Power cable
FAQ
What is the difference between the RLT Home Total Spectrum ULTRA and the RLT Home Total Spectrum ELITE?
Both are full body panels with the same 7 wavelengths, 9 preset modes and an electric stand. The RLT Home Total Spectrum ULTRA has 480 LEDs in a 1 ft wide panel with mixed 15, 30 and 60 degree lenses and touch and voice controls. The RLT Home Total Spectrum ELITE has 864 LEDs in a 2 ft wide panel with 30 degree lenses and touch and remote controls.
What is the difference between the RLT Home Total Spectrum ULTRA and the RLT Home Total Spectrum MAX?
The RLT Home Total Spectrum MAX has 360 LEDs, is about 4 ft tall for large areas like the torso, thighs or abdomen, and comes with a vertical stand. The RLT Home Total Spectrum ULTRA has 480 LEDs, is about 5 ft 4 in tall for the full body, and comes with an electric stand for standing or lying down.
Can I lie down for a session?

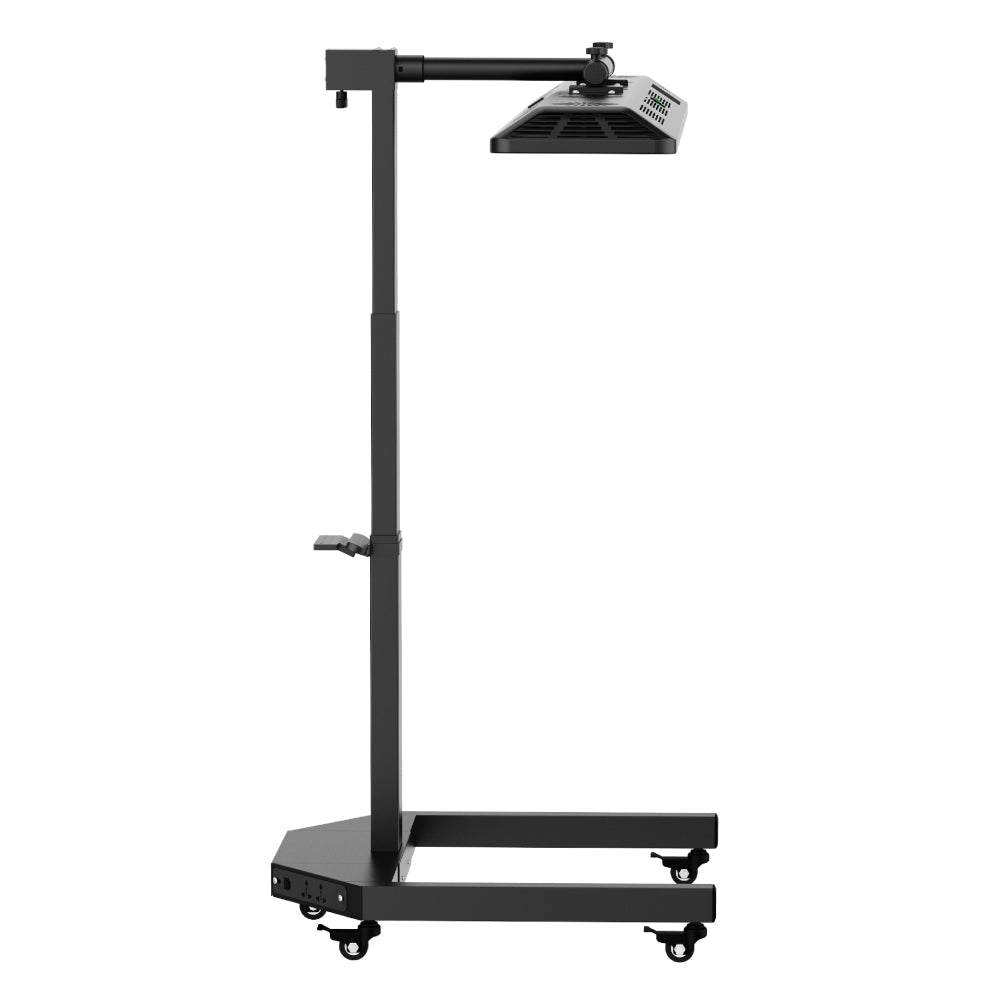

Yes. The included electric stand holds the panel horizontal so you can lie under it.
Will the stand fit over my bed or massage table?
RLT Home lists the installed stand's clearance under a bed or massage table as 5.5 in with wheels and 3 in without, and the stand adjusts up to 64 in from the ground.
How much floor space does it need?
The installed stand takes up about 3 ft by 3 ft.
How tall does the stand go?
It adjusts from 29 in at its lowest to 64 in at its highest, measured from the ground.
Does it come with a remote?
No. It uses touch and voice controls, so no remote is needed.
What do the different lens angles do?
30 degree lenses send concentrated light to the core, 60 degree inner lenses spread light edge to edge, and 15 degree outer lenses limit light spilling past the body.
Why does it come with two kinds of eye protection?
You get reading friendly protective glasses and blackout goggles, so you can choose what suits each session.
Does it need an app or Wi-Fi?
No. It does not connect to apps or the internet, and it does not share your data.
Can I turn off the pulsing?
Yes. Pulsing runs from 0 to 5,000 Hz and can be set per channel in custom mode. Set it to 0 for steady light.
What are the preset modes for?
The 9 preset modes are built for goals like skin, sleep, hair and recovery. Custom mode lets you set your own intensity and pulsing.
Does the light flicker?
No. It is flicker free.
How much EMF does it give off?
About 0.0 μT at 6 inches or greater, measured with a Cornet EMF meter and verified by 2 independent labs.
How strong is the light output?
RLT Home measured 174 mW/cm² at 8 inches with a solar power meter and 119.28 mW/cm² at 6 inches with a spectrometer.
Does it work with a standard US outlet?
Yes. It runs on AC 100 to 240V and uses 850W.
How long do the LEDs last?
The LEDs are rated for 100,000 hours, over 11 years of continuous use.
Is the RLT Home Total Spectrum ULTRA FDA registered?
Yes. It is listed with the FDA as a Class II medical device and is CE and RoHS certified.
Can I use my HSA or FSA card for this purchase?
Many HSA and FSA plans cover this type of device, but eligibility varies by provider. Please verify with your plan administrator before ordering.
What payment options are available?
We offer several payment methods, including PayPal and Shop Pay. Both PayPal and Shop Pay offer pay-over-time options, availability and terms depend on the customer's account and eligibility.
How long does shipping take?
In-stock orders are typically delivered within 8 business days. The panel and the electric stand ship separately in 2 boxes. You'll get a shipping confirmation email with tracking once it ships. Full details on our Shipping Policy.
Luxury Wellness Store is an authorized reseller of RLT Home products. This device is not intended to diagnose, treat, cure, or prevent any medical condition. Individual results may vary. Consult a healthcare provider before use if you are pregnant, have a medical condition, or are taking medication.
